Custom C

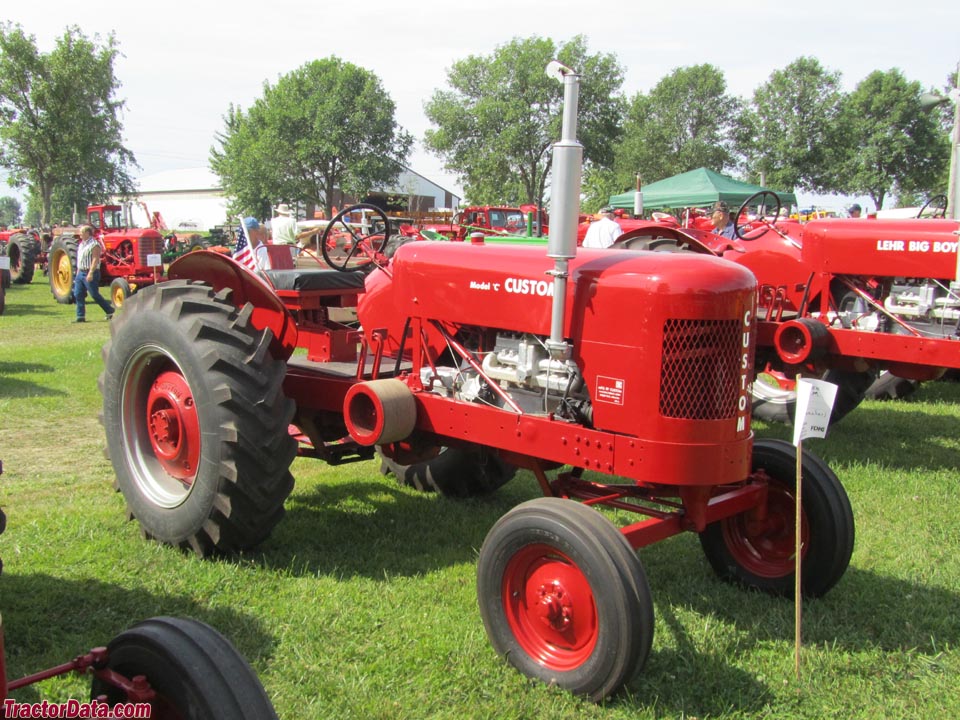

Custom C tractor photo
1947 - 1949
Row-Crop tractor
Production
ManufacturerCustom
Row-Crop tractor
Built in Shelbyville, Indiana, USA
Variants
Btricycle front
Cwide front
Custom C Engine
Chrysler 3.6L 6-cyl gasoline
Engine details ...
Custom C Power
Engine52 hp
38.8 kW
Plows2 or 3 (14-inch)
Mechanical
Two-wheel drive
Manual steering
Drum brakes
Open operator station.
Power Take-off (PTO)
Rear PTOtransmission
Dimensions & Tires
Wheelbase88 inches
223 cm
Weight3450 lbs
1564 kg
Front tire6-16
Rear tire11-28
Full dimensions and tires ...
Belt Pulley
Diameter11 inches
27 cm
Width7.5 inches
19 cm
RPM1011
Speed2910 ft/min
886.97 meters/min
References
C references literature
Orphan Tractors by Bill Vossler
