Custom B
|
|
| Production | |
| Manufacturer | Custom |
| Row-Crop tractor | |
| Built in Shelbyville, Indiana, USA | |
| Custom B Engine | |
| Chrysler 3.6L 6-cyl gasoline | |
 Engine details ... |
| Custom B Transmission | |
| 4-speed gear | |
 Transmission details ... |
| Custom B Power | |
| Engine | 52 hp 38.8 kW |
| Plows | 2 or 3 (14-inch) |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Drum brakes | |
| Open operator station. |
| Photos | |
 | |

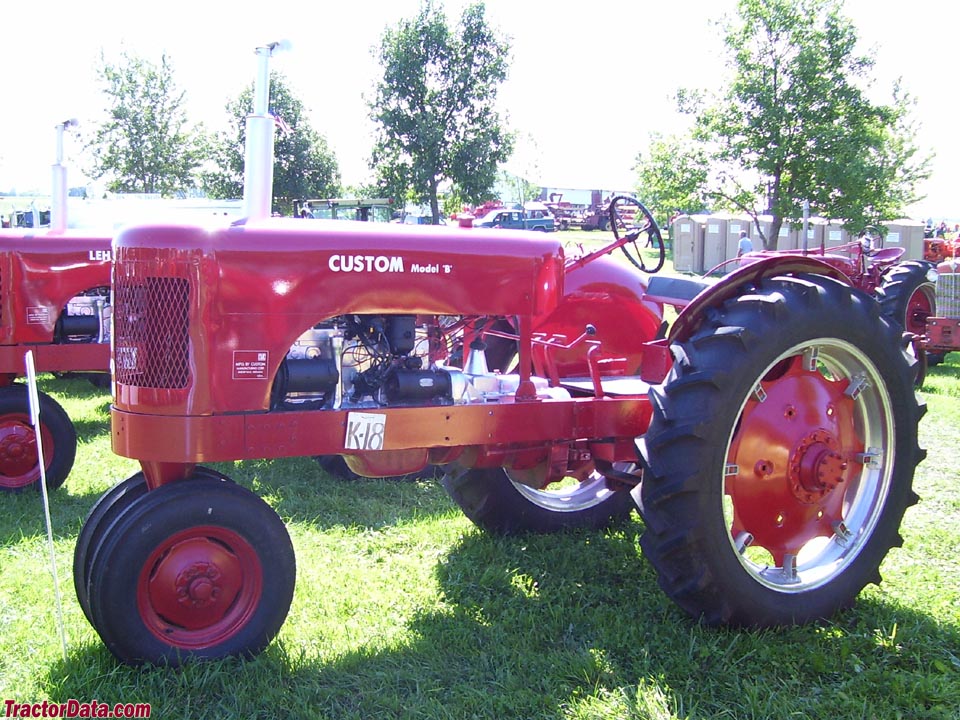

 Custom B photos... | |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| Dimensions & Tires | |
| Wheelbase | 88 inches 223 cm |
| Weight | 3450 lbs 1564 kg |
| Front tire | 6-16 |
| Rear tire | 10-38 |
 Full dimensions and tires ... | |
| Belt Pulley | |
| Diameter | 11 inches 27 cm |
| Width | 7.5 inches 19 cm |
| RPM | 1011 |
| Speed | 2910 ft/min 886.97 meters/min |
| References | |
 | |
| Orphan Tractors by Bill Vossler |
