John Deere 4610 Engine


John Deere 4610 tractor photo
2002 - 2004
4000 Ten Compact Series
Compact Utility tractor
Series map:
4510
4610
4710
38.4hp
42.8hp
46.3hp
Engine Detail
Yanmar 4TNE84
diesel
4-cylinder
liquid-cooled
Displacement122 ci
2.0 L
Bore/Stroke3.307x3.543 inches
84 x 90 mm
Power (gross)42.8 hp
31.9 kW
Air cleanerdry with safety element
Compression18:1
Rated RPM2600
Torque95 lb-ft
128.8 Nm
Torque RPM1700
Starter volts12
Starter power2.7 hp
2.0 kW
Coolant capacity6.8 qts
6.4 L
Engine Oil

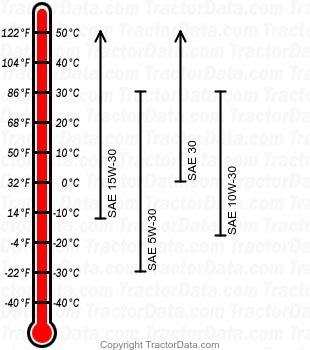

4610 diesel engine oil chart
Oil capacity5.1 qts
4.8 L
