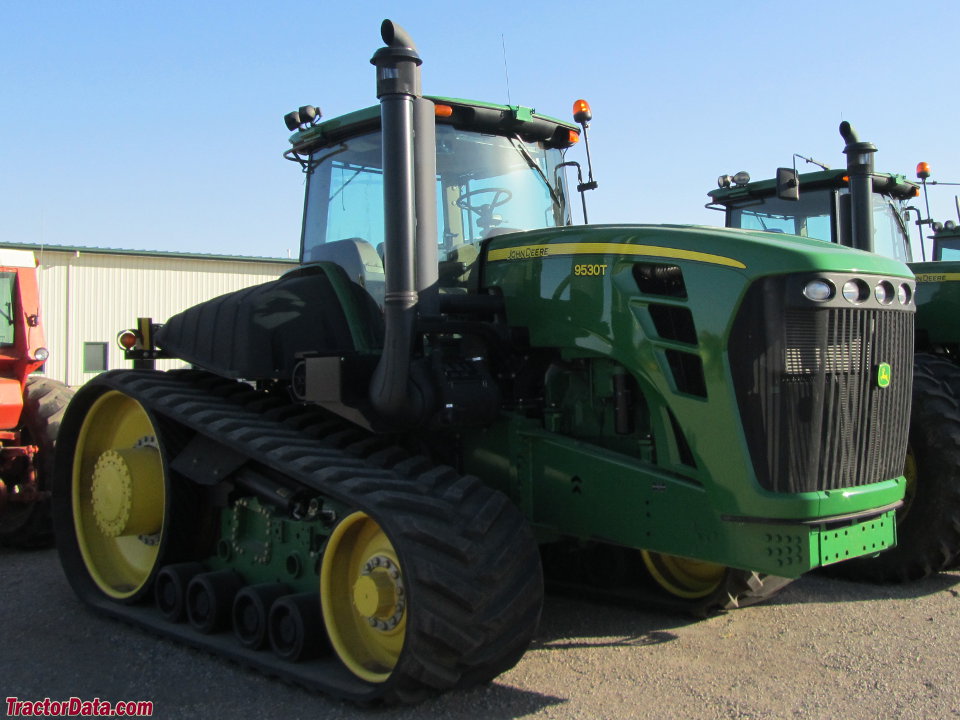

John Deere 9530T
|
|
| Production | |
| Manufacturer | John Deere |
| Agricultural Crawler tractor | |
| Built in Waterloo, Iowa, USA | |
| John Deere 9530T Engine | |
| John Deere 13.5L 6-cyl diesel | |
 Engine details ... |
| John Deere 9530T Transmission | |
| 18-speed full power shift | |
 Transmission details ... |
| John Deere 9530T Power | |
| Engine (gross) | 491 hp 366.1 kW |
| Engine | 475 hp 354.2 kW |
| PTO (claimed) | 375 hp 279.6 kW |
| Drawbar (tested) | 366.03 hp 272.9 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | crawler |
| Steering | electro-hydraulic power |
| Hydraulic wet disc brakes | |
| Cab standard with air-conditioning. | |
| Photos | |
 | |
 John Deere 9530T photos... | |
| Capacity | |
| Fuel | 330 gal 1249.0 L |
| Hydraulic system | 27 gal 102.2 L |
| Hydraulics | |
| Type | closed-center pressure flow compensated (PFC) |
| Capacity | 27 gal 102.2 L |
| Pressure | 2900 psi 200.0 bar |
| Pump flow | 48 gpm 181.7 lpm |
| SCV flow | 30 gpm 113.6 lpm |
| Tractor hitch | |
| Rear Type | 4/4N (optional) |
| Control | position and draft control |
| Rear lift | 15,300 lbs 6940 kg |
| Dimensions & Tracks | |
| Wheelbase | 116 inches 294 cm |
| Weight | 43,815 lbs 19874 kg |
| Tracks | |
 Full dimensions and tracks ... | |
| 9530T Serial Number Location | |
 | |
| Front-right of tractor frame. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Batteries | 3 |
| Battery CCA | 925 |
| Battery volts | 12 |
| References | |
 | |
| New 9030 Series Tractors published in 2007, by John Deere |
