John Deere 9430T



John Deere 9430T tractor photo
2007 - 2011
9030 Series
Agricultural Crawler tractor
Series map:
9430T
9530T
425.0hp
475.0hp
Production
ManufacturerJohn Deere
Agricultural Crawler tractor
Built in Waterloo, Iowa, USA
Variants
9430wheeled
9430Tcrawler
John Deere 9430T Engine
John Deere 13.5L 6-cyl diesel
Engine details ...
John Deere 9430T Transmission
18-speed full power shift
Transmission details ...
John Deere 9430T Power
Engine (gross)439 hp
327.4 kW
Engine425 hp
316.9 kW
PTO (claimed)375 hp
279.6 kW
Drawbar (tested)328.03 hp
244.6 kW
PTO (tested)367.82 hp
274.3 kW
Performance test details ...
Mechanical
Drivecrawler
Steeringelectro-hydraulic power
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Photos
No photos of the John Deere 9430T are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel330 gal
1249.0 L
Hydraulic system27 gal
102.2 L
Hydraulics
Typeclosed-center pressure flow compensated (PFC)
Capacity27 gal
102.2 L
Pressure2900 psi
200.0 bar
Pump flow48 gpm
181.7 lpm
SCV flow30 gpm
113.6 lpm
Tractor hitch
Rear Type4/4N (optional)
Controlposition and draft control
Rear lift15,300 lbs
6940 kg
Power Take-off (PTO)
Rear PTOindependent (optional)
Rear PTO Type1000 (1.75)
Dimensions & Tracks
Wheelbase116 inches
294 cm
Weight44,205 lbs
20051 kg
Tracks
Full dimensions and tracks ...

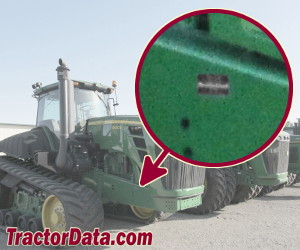

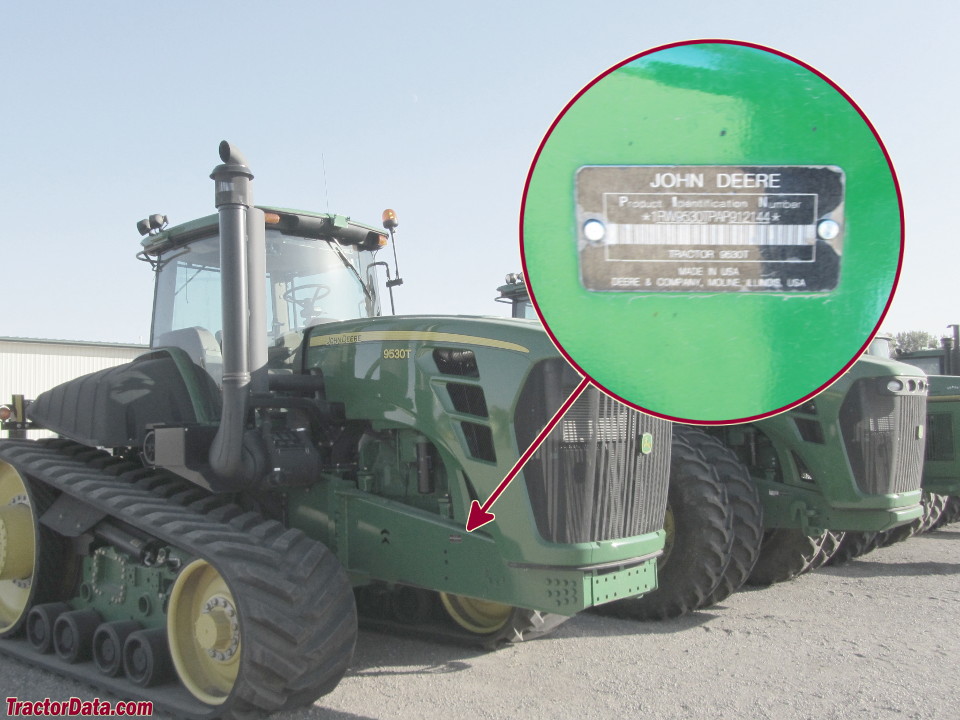

9430T Serial Number Location
John Deere 9430T serial number location
Front-right of tractor frame.
Electrical
Groundnegative
Charging systemalternator
Charging amps200
Batteries3
Battery CCA925
Battery volts12
References
9430T references literature
New 9030 Series Tractors published in 2007, by John Deere
