John Deere 9630 Engine


John Deere 9630 tractor photo
2007 - 2011
9030 Series
Four-wheel Drive (4WD) tractor
Series map:
9530
9630
475.0hp
530.0hp
Engine Detail
John Deere
turbocharged aftercooled diesel
6-cylinder
liquid-cooled
Displacement826.7 ci
13.5 L
Bore/Stroke5.197x6.496 inches
132 x 165 mm
EmissionsTier III
Power530 hp
395.2 kW
Air cleaneraspirator and dual paper elemnts
Compression16.0:1
Rated RPM2100
Starter volts12
Coolant capacity70 qts
66.2 L
Engine Oil

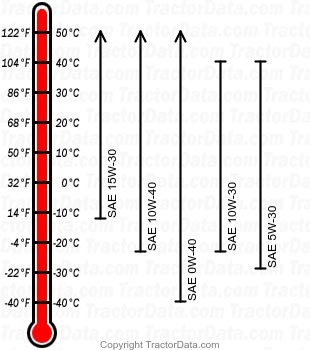

9630 diesel engine oil chart
Oil capacity63.4 qts
60.0 L
John Deere 9630 Engine

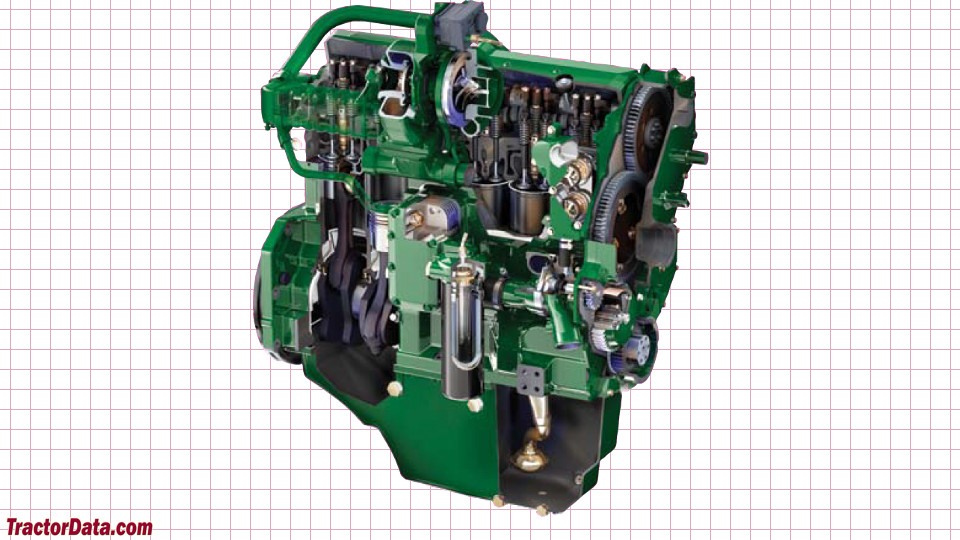

John Deere 9630 engine image
