| | 2007 - 2011 |
| 9030 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
9230
9330
9430
325.0hp
375.0hp
425.0hp
| Transmission options |
| 24-speed partial power shift |
| 18-speed full power shift |
| Transmission |

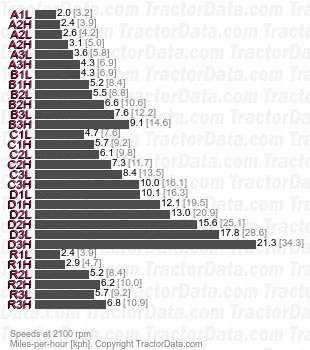

| Transmission | John Deere PowrSync
|
| Type | partial power shift
|
| Gears | 24 forward and 6 reverse
|
| Clutch | hydraulic wet disc
|
| Three gears (1-3) in four ranges (A-D) with high-low power shift. Gears and range shifts are synchronized using the clutch. |
| Speeds |
| With 620/70R42 tires. |
|
| Transmission |

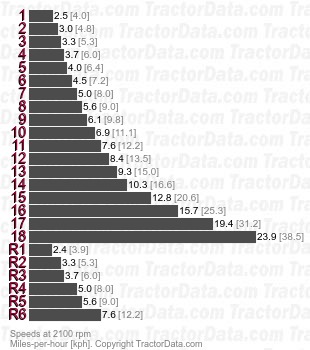

| Transmission | John Deere PowerShift
|
| Type | full power shift
|
| Gears | 18 forward and 6 reverse
|
| Clutch | electronic wet disc
|
| Speeds |
| With 620/70R42 tires. |
|
