| | 2007 - 2011 |
| 9030 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
9230
9330
9430
325.0hp
375.0hp
425.0hp
| Engine Detail |
| John Deere |
| turbocharged aftercooled diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 826.7 ci
13.5 L
|
| Bore/Stroke | 5.197x6.496 inches
132 x 165 mm
|
| Emissions | Tier III
|
| Power | 375 hp
279.6 kW
|
| Air cleaner | aspirator and dual paper elemnts
|
| Compression | 16.0:1
|
| Rated RPM | 2100
|
| Starter volts | 12
|
| Coolant capacity | 70 qts
66.2 L
|

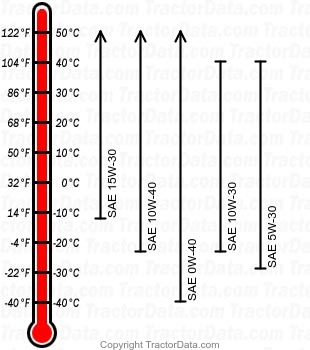

| Engine Oil |
|
| Oil capacity | 44 qts
41.6 L
|

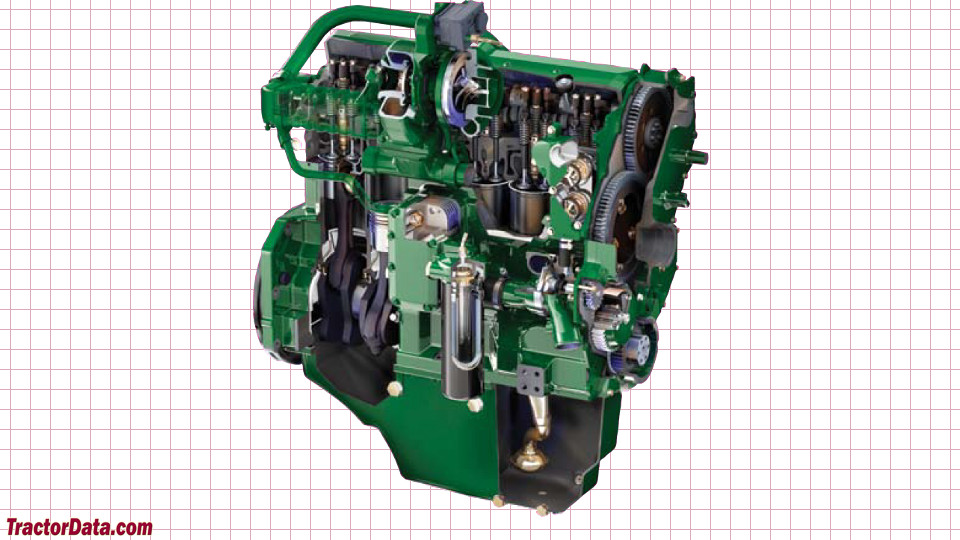

| John Deere 9330 Engine |
 |
