| | 2007 - 2011 |
| 9030 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
9230
9330
325.0hp
375.0hp
| Engine Detail |
| John Deere |
| turbocharged aftercooled diesel |
| 6-cylinder |
| liquid-cooled inline |
| Displacement | 549.2 ci
9.0 L
|
| Bore/Stroke | 4.661x5.354 inches
118 x 136 mm
|
| Emissions | Tier III
|
| Power | 325 hp
242.4 kW
|
| Air cleaner | dual paper elements
|
| Compression | 16.3:1
|
| Rated RPM | 2100
|
| Starter volts | 12
|
| Coolant capacity | 50 qts
47.3 L
|

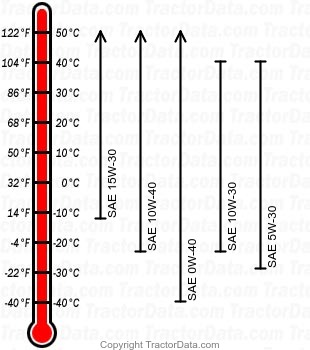

| Engine Oil |
|
| Oil capacity | 33.6 qts
31.8 L
|

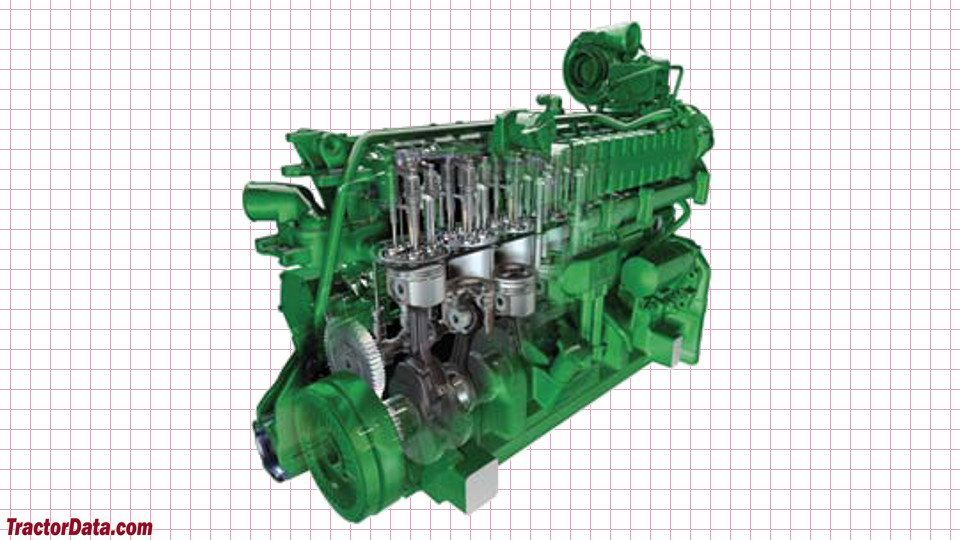

| John Deere 9230 Engine |
 |
