John Deere 7430 Premium

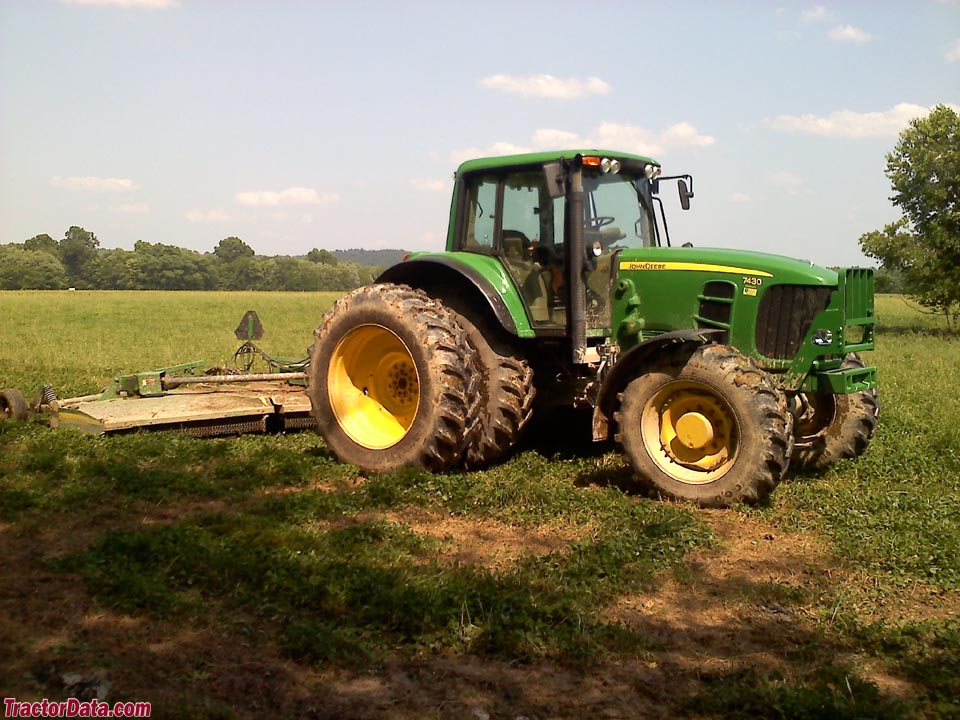

John Deere 7430 Premium tractor photo
2007 - 2011
7030 Small-Frame Series
Row-Crop tractor
Series map:
7330 Premium
7430 Premium
7530 Premium
155.0hp
166.0hp
180.0hp
Production
ManufacturerJohn Deere
Row-Crop tractor
FactoriesWaterloo, Iowa, USA
 Mannheim, Baden-Württemberg, Germany
Original price$129,670 (2010)
John Deere 7430 Premium Transmissions
16-speed partial power shift
20-speed partial power shift
infinitely variable transmission
Transmission details ...
John Deere 7430 Premium Power
Engine166 hp
123.8 kW
PTO (claimed)140 hp
104.4 kW
Drawbar (tested)126.57 hp
94.4 kW
PTO (tested)161.22 hp
120.2 kW
Performance test details ...
Mechanical
Four-wheel drive
Steeringhydrostatic power
Differential hydraulic wet disc brakes
ComfortGard Premium cab standard.
Capacity
Fuel80 gal
302.8 L
Hydraulic system13.7 gal
51.9 L
 15.9 gal (with IVT)
60.2 L
Hydraulics
Typeconstand flow load sensing
 closed-center pressure and flow compensated (Premium)
Capacity13.7 gal
51.9 L
 15.9 gal (with IVT)
60.2 L
Pressure2900 psi
200.0 bar
Valves2 to 4
Pump flow29 gpm
109.8 lpm
Tractor hitch
Rear TypeIII
Rear lift (at ends)10,600 lbs
4808 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
 540E/1000/1000E (optional)
Front PTOindependent
Front PTO Type1000 (optional)
Dimensions & Tires
Wheelbase105.7 inches
268 cm
Weight14594 to 15015 pounds
Front tire16.9R28
Rear tire18.4R42
Full dimensions and tires ...
7430 Premium Serial Numbers
Location:On right side of main tractor frame.
Electrical
Groundnegative
Battery volts12
References
7430 Premium references literature
6030 and 7030 Series Tractors published in 2007, by John Deere
