John Deere 7330 Transmission


John Deere 7330 tractor photo
2007 - 2011
7030 Small-Frame Series
Row-Crop tractor
Series map:
7230
7330
135.0hp
150.0hp
Transmission options
16-speed partial power shift
20-speed partial power shift
32-speed partial power shift
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Oil capacity54.8 qts
51.9 L
Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.
Speeds
With 18.4R38 rear tires.

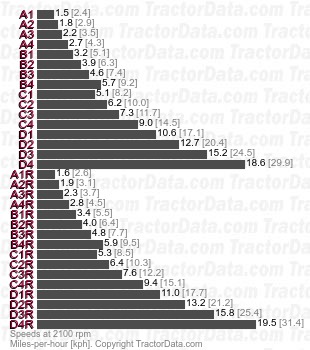

7330 PowrQuad partial power shift speeds
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears20 forward and reverse
Oil capacity54.8 qts
51.9 L
Five ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.
Speeds
With 18.4R38 rear tires.
7330 PowrQuad partial power shift speeds
Transmission
TransmissionJohn Deere PowrQuad Plus
Typepartial power shift
Gears20 forward and reverse
Oil capacity54.8 qts
51.9 L
PowrQuad Plus is standard on tractors with cab, replacing the separate gear shift lever with a push-button gear shift on the range lever. Available in 16- or 20-speed. Clutch must be used to change range, cluthless push-button power shift for speeds.
Speeds
With 18.4R38 rear tires. Sixteen-speed transmission has same ground speeds but without E Range.
7330 PowrQuad Plus partial power shift speeds
Transmission
TransmissionJohn Deere PowrQuad Creeper
Typepartial power shift
Gears32 forward and reverse
Oil capacity56 qts
53.0 L
Optional creeper could be added to both the 16- and 20-speed PowrQuad. Creeper is engaged with a separate shift lever that selects between creeper (turtle) and the standard transmission ratio (rabbit). Tractor must be stopped, clutch used, and engine speed below 1000 RPMs to shift in or out of the creeper.
Speeds
With 18.4R38 rear tires.

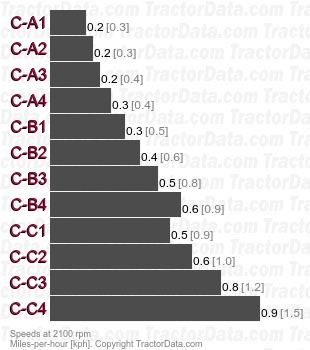

7330 PowrQuad Creeper partial power shift speeds
