| | 2007 - 2011 |
| 7030 Small-Frame Series | | Row-Crop tractor |
|
Series map:
7130
7230
7330
121.0hp
135.0hp
150.0hp
| Transmission options |
| 12-speed full synchro shift |
| 16-speed full synchro shift |
| 16-speed partial power shift |
| 24-speed partial power shift |
| Transmission |
| Transmission | John Deere SyncroPlus
|
| Type | full synchro shift
|
| Gears | 12 forward and 4 reverse
|
| Oil capacity | 54.8 qts
51.9 L
|
| Four ranges, each with four forward gears and reverse operated via a range shift lever and gear shift lever. Cluch must be used to change range or gear. Only avaialable with ROPS. |

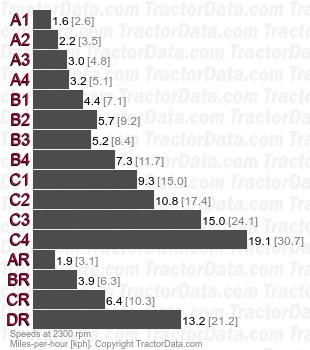

| Speeds |
| With 18.4R38 rear tires. |
|
| Transmission |
| Transmission | John Deere SyncroPlus PowrReverser
|
| Type | full synchro shift
|
| Gears | 16 forward and reverse
|
| Oil capacity | 54.8 qts
51.9 L
|
| Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range or gear. |

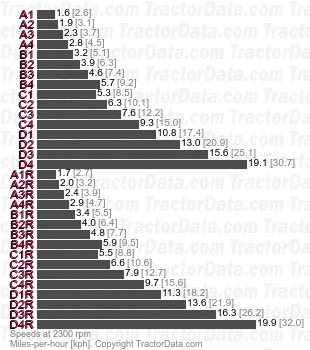

| Speeds |
| With 18.4R38 rear tires. |
|
| Transmission |
| Transmission | John Deere PowrQuad
|
| Type | partial power shift
|
| Gears | 16 forward and reverse
|
| Oil capacity | 54.8 qts
51.9 L
|
| Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change. |
| Speeds |
| With 18.4R38 rear tires. |
|
| Transmission |
| Transmission | John Deere PowrQuad
|
| Type | partial power shift
|
| Gears | 24 forward and reverse
|
| Oil capacity | 54.8 qts
51.9 L
|
| Six ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change. |
| Speeds |
| With 18.4R38 rear tires. Reverse speeds are approximately 5% faster than listed forward speeds. |
|
