Tractors > John Deere > 7130

John Deere 7130



John Deere 7130 tractor photo
2007 - 2011
7030 Small-Frame Series
Row-Crop tractor
Series map:
7130
7230
121.0hp
135.0hp
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany
The basic Deere 7130 was available a basic cab or open-operator station with ROPS. Upgraded hydraulics and hitch were optional on open-operator station models. Upgraded systems with a cab were only available on the 7130 Premium.
Variants
7130base tractor
7130 Premiumdeluxe tractor
John Deere 7130 Engines
John Deere 6.8L 6-cyl diesel
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 7130 Transmissions
12-speed full synchro shift
16-speed full synchro shift
16-speed partial power shift
24-speed partial power shift
Transmission details ...
John Deere 7130 Power
Engine (gross)125 hp
93.2 kW
PTO (claimed)100 hp
74.6 kW
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (optional)
Steeringhydrostatic power
Differential hydraulic wet disc brakes
Two-post Roll-Gard ROPS. Cab optional.
Photos
John Deere 7130
John Deere 7130 photos...
Capacity
Fuel54.7 gal
207.0 L
 66 gal (optional)
249.8 L
Hydraulic system13.7 gal
51.9 L
 15.9 gal
60.2 L
Front axle8.8 qts
8.3 L
Front hubs1.6 qts
1.5 L
Hydraulics
Typeconstant flow load sensing
 closed-center load sensing (optional with ROPS)
Capacity13.7 gal
51.9 L
 15.9 gal
60.2 L
Pressure2900 psi
200.0 bar
Valves1 to 4
Pump flow21.1 gpm
79.9 lpm
 29 gpm (optional with ROPS)
109.8 lpm
Tractor hitch
Rear TypeII
Controlposition control
 electronic lower-link (optional with ROPS)
Rear lift (at 24"/610mm)5,915 lbs
2683 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase106.3 inches (2WD)
270 cm
 104.3 inches
264 cm
Weight9657 to 12340 pounds
Front tire10.00-16
Rear tire18.4R38 (2WD)
Full dimensions and tires ...

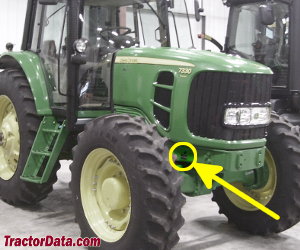

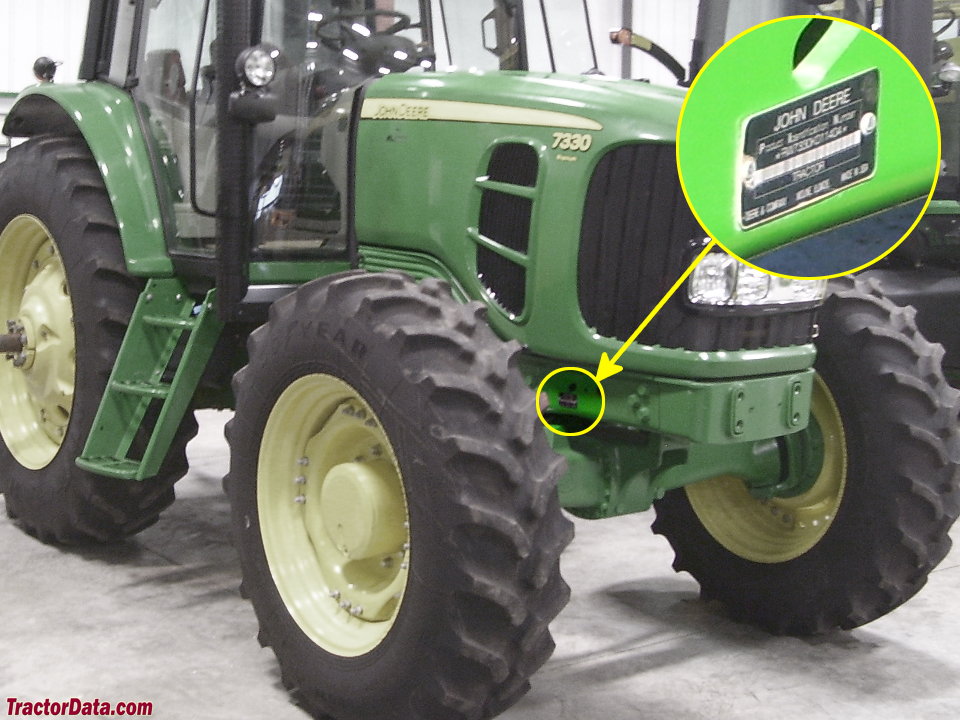

7130 Serial Number Location
John Deere 7130 serial number location
Right side of main frame above front axle
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Battery volts12
References
7130 references literature
6030 and 7030 Series Tractors published in 2007, by John Deere
