Yanmar FX305

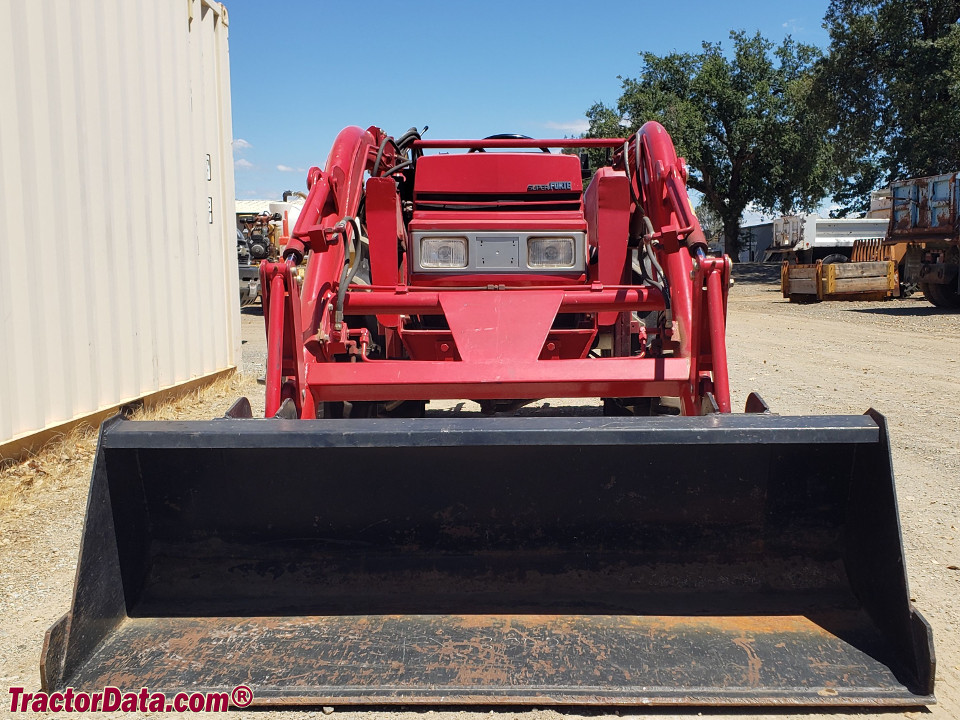

Yanmar FX305 tractor photo
1987 - 1992
Super Forte Series
Compact Utility tractor
Series map:
FX285
FX305
FX335
20.9kw
22.4kw
24.6kw
Production
ManufacturerYanmar
Compact Utility tractor
Variants
FX305D4WD
Yanmar FX305 Engine
Yanmar 1.6L 4-cyl diesel
Engine details ...
Yanmar FX305 Power
Engine30 hp
22.4 kW
Mechanical
Two- or four-wheel drive
Open operator station.
Power Take-off (PTO)
Rear PTO Type540 (1.375)
Dimensions & Tires
2WD Wheelbase72.1 inches
183 cm
4WD Wheelbase72.2 inches
183 cm
Weight2976 to 3241 pounds
Front tire6.00-16
2WD Rear tire13.6-26
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
