Ford 2000
| | 1962 - 1975 |
|
| Utility tractor |
|
Series map:
2000
3000
36.0hp
46.7hp
| Production |
| Manufacturer | Ford
|
| Utility tractor |
| Built in Highland Park, Michigan, USA |
| Original price was $5,675 in 1975 |
| Although it carries the 2000 name as its predecessor did, the three-cylinder Ford 2000 tractor is an entirely different machine than the earlier (four-cylinder) model. |
| Ford 2000 Power |
| Engine | 39 hp
29.1 kW
|
| Gas 4-speed PTO (claimed) | 30 hp
22.4 kW
|
| Gas 6-speed PTO (claimed) | 30.5 hp
22.7 kW
|
| Gas 8-speed PTO (claimed) | 30.8 hp
23.0 kW
|
| Diesel 6-speed PTO (claimed) | 31.9 hp
23.8 kW
|
| Diesel 8-speed PTO (claimed) | 31.2 hp
23.3 kW
|
| Drawbar (tested) | 28.10 hp
21.0 kW
|
| PTO (tested) | 32.09 hp
23.9 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Differential lock | mechanical rear *Optional on late-model tractors.
|
| Steering | manual
|
| Steering | power OptOptional
|
| Differential mechanical expanding shoe brakes |
| Open operator station |
| Capacity |
| Fuel | 13 gal
49.2 L
|
| Hydraulic system | 6.3 gal
23.8 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 6.3 gal
23.8 L
|
| Pressure | 2500 psi
172.4 bar
|
| Valves | 2
|
| Pump flow | 4.0 gpm
15.1 lpm
|
| Steering flow | 4.25 gpm
16.1 lpm
|
| Steering press. | 700 psi
48.3 bar
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 2800 lbs
1270 kg
|
| Power Take-off (PTO) |
| Rear PTO | transmission (4/6/8-speed)
|
| | live (8/12-speed)
|
| Rear PTO Type | 540
|
| Engine RPM | 540@1500 (4/12-speed)
|
| | 540@1000 (12-over)
|
| | 540@1600 (8-speed)
|
| | 540@1800 (8-speed live)
|

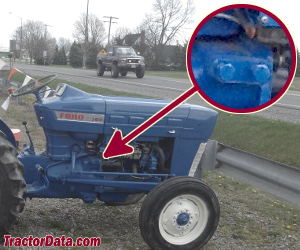

| 2000 Serial Number Location |
 |
| On the right side of the tractor, on the starter mounting |
| Electrical |
| Ground | negative
|
| Charging system | generator
|
| Charging amps | 22
|
| Battery volts | 12
|
| Battery AH | 80 (gas)
|
| | 128 (diesel)
|

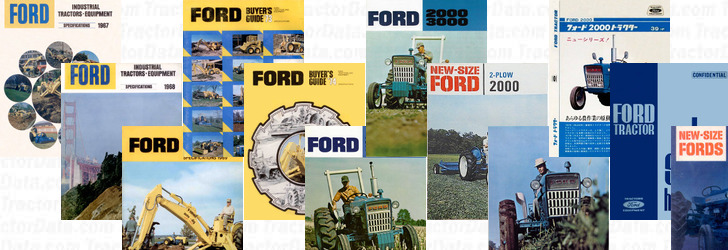

| References |
 |
| Tractors For Industrial Use published in 1967, by Ford |
| Industrial Tractors - Equipment published in 1968, by Ford |
| Industrial Tractors & Equipment Specifications 1969 published by Ford |
| Buyer's Guide '73 published in 1973, by Ford |
| Buyer's Guide '74 published in 1974, by Ford |
| 2000 - 3000 published in 1972, by Ford |
| 2000 - 3000 published by Ford |
| New-Size 2-Plow 2000 published in 1965, by Ford |
| 2000 published in 1967, by Ford |
| Ford 2000 published in 1971 |
| Ford Tractor Sales Handbook published in 1968 |
| New-Size Fords published in 1964 |
| Heavier-Stronger-Tougher Compare New-Size Fords published in 1965 |
| 2, 3, or 4-plow tractor? Here's why farmers favor Fords. published in 1968 |
 |

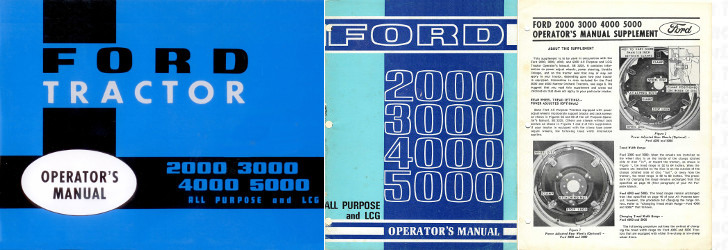

| Ford Tractor Operator's Manual 2000 3000 4000 5000 (SE3006) published in 1966 |
| Operator's Manual 2000 3000 4000 5000 (SE 3225) published in 1968 |
| Operator's Manual Supplement 2000 3000 4000 5000 (SE 3225-S2A) published in 1968 |
