| | 1962 - 1975 |
|
| Utility tractor |
|
Series map:
2000
3000
36.0hp
46.7hp
| Transmission options |
| 12-speed unsynchronized |
| 4-speed unsynchronized gear |
| 8-speed unsynchronized gear |
| 6-speed unsynchronized gear |

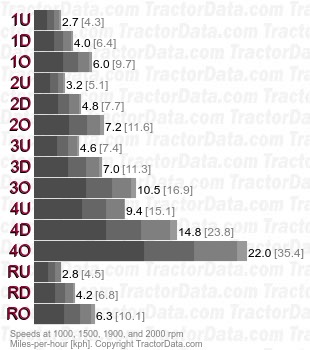

| Transmission |
| Transmission | 4-speed with over/under
|
| Type | unsynchronized
|
| Gears | 12 forward and 3 reverse
|
| Clutch | dry disc
|
| Oil capacity | 7 qts
6.6 L
|
| Oil type |
|
| Over/under lever located to the left of the shift lever. Tractor must be stopped before shifting. |
| Speeds |
|

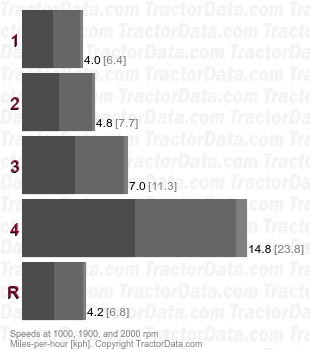

| Transmission |
| Type | unsynchronized gear
|
| Gears | 4 forward and 1 reverse
|
| Clutch | dry disc
|
| Oil capacity | 6.6 qts
6.2 L
|
| Oil type |
|
| Tractor must be stopped before shifting. |
| Speeds |
|

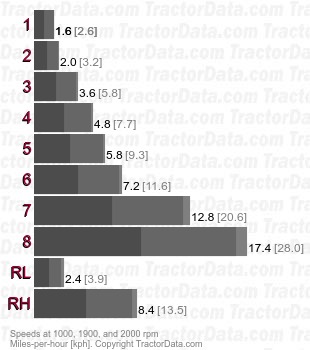

| Transmission |
| Type | unsynchronized gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | dry disc
|
| Oil capacity | 13.2 qts
12.5 L
|
| Oil type |
|
| Four-speed gear selector on left, high-low range select lever on right. Tractor must be stopped before shifting. Live PTO was optional with the 8-speed transmission. |
| Speeds |
|

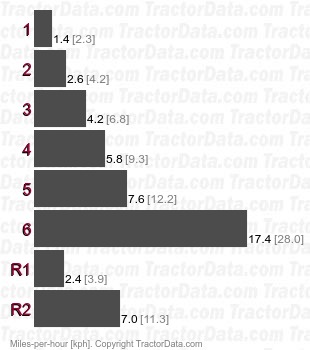

| Transmission |
| Type | unsynchronized gear
|
| Gears | 6 forward and 2 reverse
|
| Clutch | dry disc with cerametallic buttons
|
| Three speeds and reverse in two ranges. Only available with transmission PTO. |
| Speeds |
|
