Challenger MT565B
| | 2004 - 2011 |
|
| MT500B Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | Challenger (a part of AGCO)
|
| Row-Crop tractor |
| Built in Beauvais, France |
| Original price | $113,025 (2009 AutoPower 2WD )
|
| $126,284 (2009 AutoPower 4WD )
|
| $135,972 (2009 CVT 4WD )
|
| Variants |
| 7490 | similar Massey Ferguson model
|
| 6490 | similar Massey Ferguson model
|
| Challenger MT565B Power |
| Engine (gross) | 170 hp
126.8 kW
|
| PTO (claimed) | 145 hp
108.1 kW
|
| Drawbar (tested) | 124.4 hp
92.8 kW
|
| PTO (tested) | 185.9 hp
138.6 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | electro-hydraulic front and rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Trailer brakes | hydraulic OptOptional
|
| Cab standard with heat and air-conditioning. Optional pneumatic cab suspension and automatic temperature control. |
| Photos |
| No photos of the Challenger MT565B are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Capacity |
| Fuel | 98 gal
370.9 L
|
| AP6 Hydraulic system | 18.5 gal
70.0 L
|
| CVT Hydraulic system | 26.4 gal
99.9 L
|
| Hydraulics |
| Type | closed center pressure flow compensated (PFC)
|
| AP6 Capacity | 18.5 gal
70.0 L
|
| CVT Capacity | 26.4 gal
99.9 L
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 4 to 5
|
| Total flow | 29 gpm
109.8 lpm
|
| | 39 gpm*Optional with CVT transmission.
147.6 lpm
|
| Tractor hitch |
| Rear Type | 2/3
|
| Rear lift (at 24"/610mm) | 15,240 lbs
6912 kg
|
| | 14,283 lbs (CVT)
6478 kg
|
| Front Hitch | optional
|
| Front lift (at ends) | 8,800 lbs
3991 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540/540E/1000 (1.375)
|
| Front PTO | independent OptOptional
|
| Front PTO Type | 1000 (1.375)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 150
|
| Batteries | 2
|
| Battery CCA | 420
|
| Battery volts | 12
|
| References |
 |

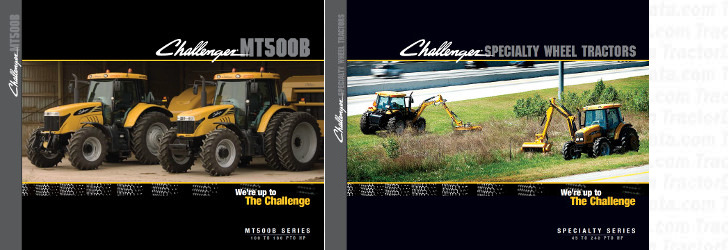

| Challenger MT500B Series published in 2008, by AGCO |
| Challenger Specialty Wheel Tractors published in 2007 |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on October 21, 2022 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...
Full dimensions and tires ...
Attachment details ...
