Challenger MT565B Transmission


Challenger MT565B tractor photo
2004 - 2011
Model year
MT500B Series
Row-Crop tractor
Series map:
MT555B
MT565B
MT575B
160.0hp
170.0hp
185.0hp
Transmission options
24-speed partial power shift
continuously variable transmission
Transmission
TransmissionAutoPower VI
Typepartial power shift
Gears24 forward and reverse
Clutchhydraulic wet disc
Oil capacity74 qts
70.0 L
Four ranges with six power shifts each.
Transmission
TransmissionTechStar CVT
Typecontinuously variable transmission
Gearsinfinite forward and reverse
Oil capacity61.2 qts
57.9 L
Speeds
50 KPH speed optional with suspended front axle.

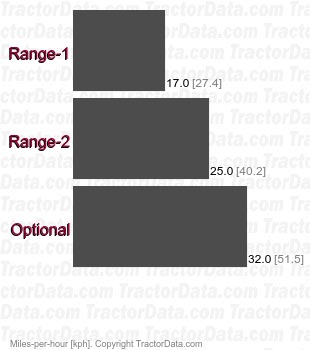

MT565B TechStar CVT continuously variable transmission speeds
