Challenger MT545B Tests
|
|
| Tractor Tests | |
| OECD 2432: diesel CVT 4WD | |
| OECD 2536: diesel AutoPower VI 4WD |

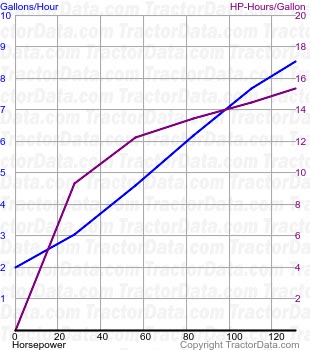

| OCED Tractor Test 2432 | |||
| |||
| OCED Tractor Test 2432 | |
| Diesel CVT 4WD March 2008 - May 2008, Link: OCED Tractor Test 2432 file | |
| PTO performance | |
| Max power | 156.2 hp 116.5 kW |
| Fuel use | 9.1 gal/hour 34.4 l/hour |
| Power at rated engine speed | 130.8 hp 97.5 kW |
| Fuel use | 8.5 gal/hour 32.2 l/hour |
| Power at rated PTO speed | 152.7 hp 113.9 kW |
| Fuel use | 9.2 gal/hour 34.8 l/hour |
| Drawbar performance | |
| Max power | 111.0 hp 82.8 kW |
| Fuel use | 8.8 gal/hour 33.3 l/hour |
| Pull at 7.7 KPH | |
| Max pull | 16,635 lbs 7545 kg |

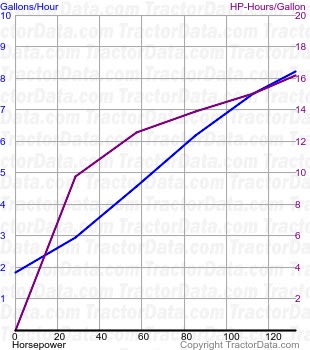

| OCED Tractor Test 2536 | |||
| |||
| OCED Tractor Test 2536 | |
| Diesel AutoPower VI 4WD August 2009 - October 2009, Link: OCED Tractor Test 2536 file | |
| PTO performance | |
| Max power | 146.3 hp 109.1 kW |
| Fuel use | 8.3 gal/hour 31.4 l/hour |
| Power at rated engine speed | 132.5 hp 98.8 kW |
| Fuel use | 8.2 gal/hour 31.0 l/hour |
| Power at rated PTO speed | 144.8 hp 108.0 kW |
| Fuel use | 8.2 gal/hour 31.0 l/hour |
| Drawbar performance | |
| Max power | 95.5 hp 71.2 kW |
| Fuel use | 7.7 gal/hour 29.1 l/hour |
| Gear 3A used for power test. | |
| Max pull | 12,925 lbs 5862 kg |
| Gear 1D used for pull test. | |
