Challenger MT525B Engine


Challenger MT525B tractor photo
2004 - 2011
Model year
MT500B Series
Row-Crop tractor
Series map:
MT525B
MT535B
120.0hp
135.0hp
Engine Detail
Caterpillar C6.6 ACERT
turbocharged aftercooled diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement402.8 ci
6.6 L
Bore/Stroke4.14x5.00 inches
105 x 127 mm
EmissionsTier III
Power120 hp
89.5 kW
Air cleanerdry
Rated RPM2200
Starter volts12
Coolant capacity26.92 qts
25.5 L
Challenger MT525B Engine

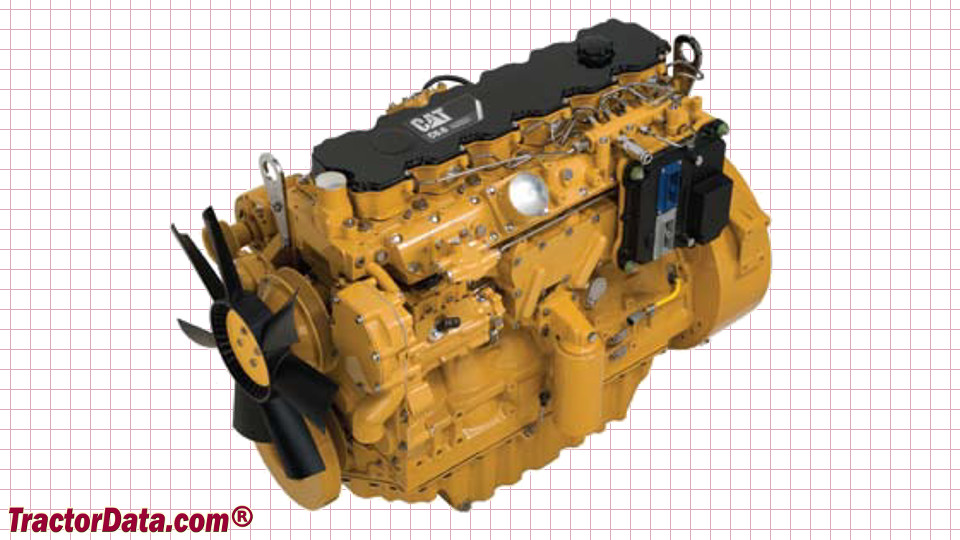

Challenger MT525B engine image
