Fiat 70-56

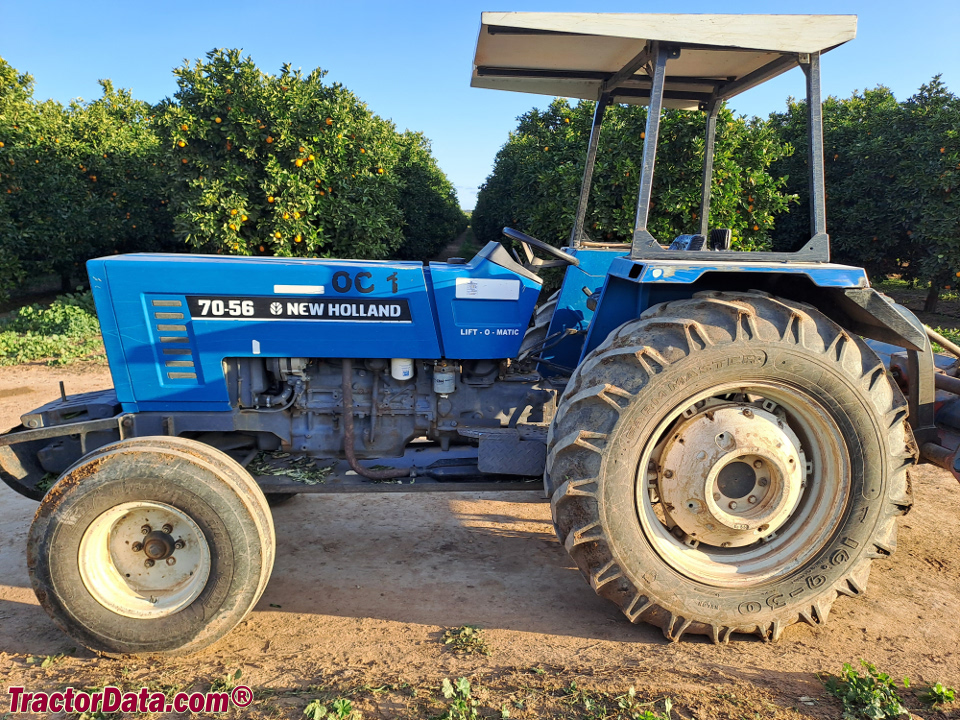

Fiat 70-56 tractor photo
1989 - 2001
56 Series
Utility tractor
Production
ManufacturerFiat
Utility tractor
Variants
70-562WD
70-56 DT4WD
Fiat 70-56 Engine
Fiat 3.6L 4-cyl diesel
Engine details ...
Fiat 70-56 Transmissions
8-speed partially synchronized
12-speed partially synchronized
Transmission details ...
Fiat 70-56 Power
Engine70 hp
52.2 kW
Mechanical
Two- or four-wheel drive
ROPS with canopy.
Tractor hitch
Rear TypeII/I
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Dimensions & Tires
2WD Wheelbase86.7 inches
220 cm
4WD Wheelbase85.1 inches
216 cm
Weight5940 lbs
2694 kg
Front tire7.50-16
2WD Rear tire16.9-30
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
