J.I. Case DO

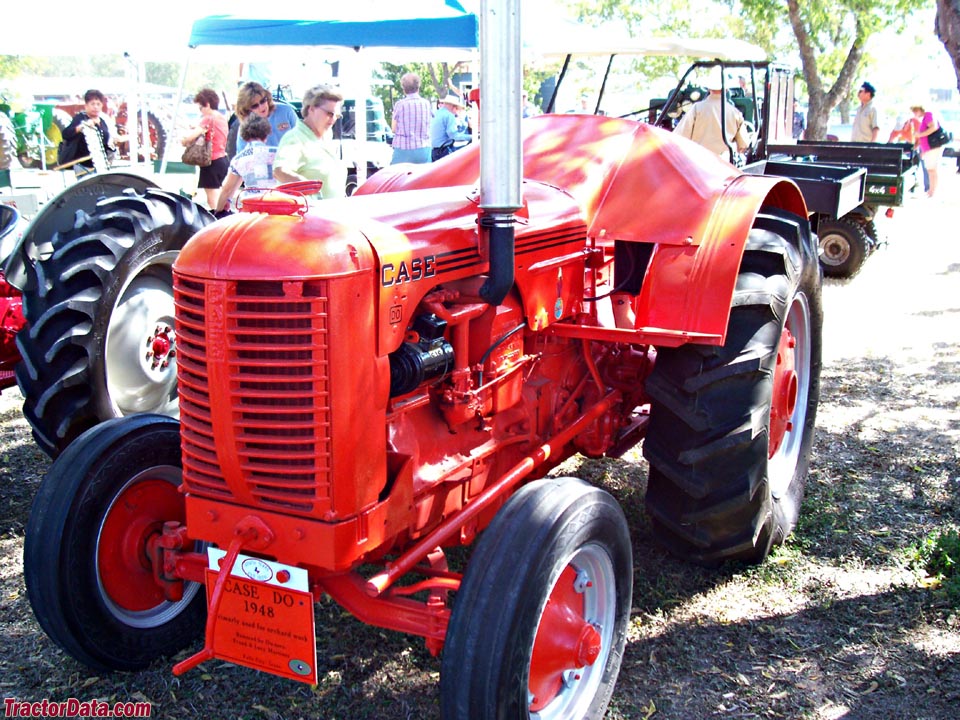

J.I. Case DO tractor photo
1939 - 1953
D Series
Orchard/Vineyard tractor
Series map:
DO
-1hp
Production
ManufacturerJ.I. Case
Orchard/Vineyard tractor
Built in Racine, Wisconsin, USA
J.I. Case DO Engine
J.I. Case 4.3L 4-cyl gasoline
Gas Fuel tank19 gal
71.9 L
 17 gal (distillate)
64.3 L
Aux. fuel2 gal
7.6 L
Engine details ...
J.I. Case DO Power
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Rear PTOcontinuous
 live *After 1953
Rear PTO Type540
Belt Pulley
Diameter12.25 inches
31 cm
Width7.25 inches
18 cm
RPM818
Speed2620 ft/min
798.58 meters/min
References
DO references literature
Case Eagle Hitch Tractors published in 1953, by J.I. Case
