J.I. Case 310-B Transmission


J.I. Case 310-B tractor photo
1958 - 1959
300B Series
Utility tractor
Series map:
310-B
41.1hp*
*Estimated engine power for comparison only.
Transmission options
4-speed gear
12-speed gear
8-speed shuttle
Transmission
Typegear
Gears4 forward and 1 reverse
Clutch235mm dry disc
Oil capacity17 qts
16.1 L
Speeds
With 11-24 rear tires.

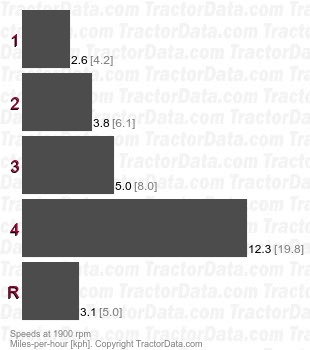

310-B  gear speeds
Transmission
TransmissionTripl-Range
Typegear
Gears12 forward and 3 reverse
Clutch235mm dry disc
Oil capacity17 qts
16.1 L
Four gears, plus reverse, in three ranges.
Speeds
With 12-28 rear tires.

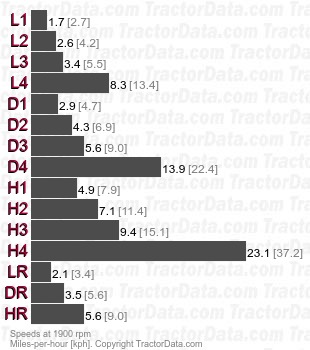

310-B Tripl-Range gear speeds
Shift Pattern
J.I. Case 310-B transmission controls
J.I. Case 310-B Transmission
J.I. Case 310-B transmission image
1Foot clutch
2Hand clutch
3Throttle
4Gear shift
5Range shift
6Brakes
Transmission
Typeshuttle
Gears8 forward and reverse
Clutch235mm dry disc
Oil capacity17 qts
16.1 L
Speeds

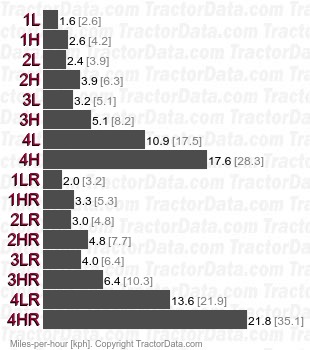

310-B  shuttle speeds
