| | 1958 - 1959 |
| 500B Series | | Standard-tread tractor |
|
Series map:
510-B
50.0hp*
*Estimated engine power for comparison only.
| Transmission options |
| 4-speed gear |
| 8-speed mechanical shuttle |
| Transmission |
| Type | gear
|
| Gears | 4 forward and 1 reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 44 qts
41.6 L
|
| Speeds |
| With 11-28 rear tires. |
|
| Transmission |
| Transmission | Dual Range
|
| Type | mechanical shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 44 qts
41.6 L
|
| Four gears in two ranges with mechanical shuttle. |

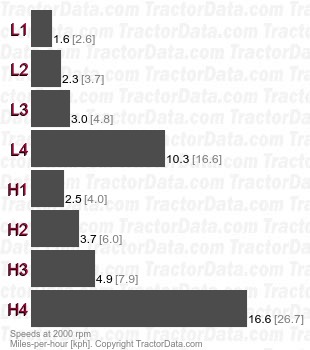

| Speeds |
| With 11-28 rear tires. Reverse speeds are 24% faster than forward. |
|
