J.I. Case 410-B Engine
|
|
| Engine Detail | |
| J.I. Case | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 148 ci 2.4 L |
| Bore/Stroke | 3.375x4.125 inches 86 x 105 mm |
| Fuel system | carburetor |
| Air cleaner | oil bath |
| Compression | 7.1:1 |
| Rated RPM | 2050 |
| Idle RPM | 500-2125 |
| Firing order | 1-3-4-2 |
| Starter | electric |
| Starter volts | 12 |
| Coolant capacity | 13 qts 12.3 L |
| Sparkplug | Champion D-16 |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Intake valve clearance | 0.014 inches (cold) 0.356 mm |
| Exhaust valve clearance | 0.014 inches (cold) 0.356 mm |

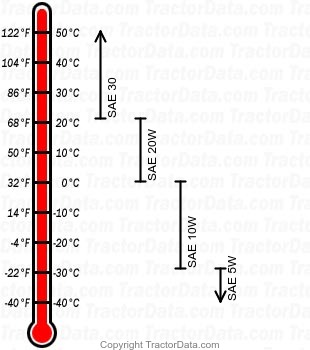

| Engine Oil | |
| |
| Oil capacity | 5 qts 4.7 L |
| Oil change | 100 h |
