J.I. Case 1594 Tests


J.I. Case 1594 tractor photo
1983 - 1984
94 Series
Utility tractor
Series map:
1594
1694
97.0hp
112.0hp
Tractor Tests
NTTL 1546: diesel synchromesh 2WD
NTTL 1547: diesel Hydra-Shift 2WD
Nebraska Tractor Test 1546

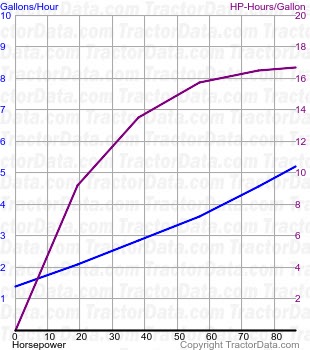

1594 fuel use from test 1546
Nebraska Tractor Test 1546
Diesel synchromesh 2WD
October 24 - November 2, 1984
Link: Nebraska Tractor Test 1546 file
PTO performance
Power at rated engine speed85.90 hp
64.1 kW
Fuel use5.2 gal/hour
19.7 l/hour
Power at rated PTO speed80.83 hp
60.3 kW
Fuel use4.7 gal/hour
17.8 l/hour
Drawbar performance
Max power72.17 hp
53.8 kW
Fuel use5.1 gal/hour
19.3 l/hour
Gear 7 used for power test.
Max pull8,331 lbs
3778 kg
Gear 4 used for pull test.
Nebraska Tractor Test 1547

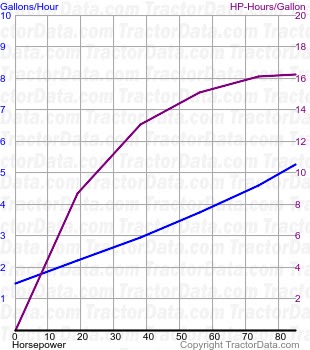

1594 fuel use from test 1547
Nebraska Tractor Test 1547
Diesel Hydra-Shift 2WD
October 23 - 30, 1984
Link: Nebraska Tractor Test 1547 file
PTO performance
Power at rated engine speed85.54 hp
63.8 kW
Fuel use5.2 gal/hour
19.7 l/hour
Power at rated PTO speed81.94 hp
61.1 kW
Fuel use4.9 gal/hour
18.5 l/hour
Drawbar performance
Max power69.37 hp
51.7 kW
Fuel use5.1 gal/hour
19.3 l/hour
Gear 7 used for power test.
Max pull8,198 lbs
3718 kg
Gear 4 used for pull test.
