John Deere 4510 Transmission


John Deere 4510 tractor photo
2002 - 2004
4000 Ten Compact Series
Compact Utility tractor
Series map:
4410
4510
4610
34.6hp
38.4hp
42.8hp
Transmission options
9-speed partially synchronized
12-speed power shuttle
Transmission
TransmissionSyncShift
Typepartially synchronized
Gears9 forward and 3 reverse
Oil capacity38.8 qts
36.7 L
The SyncShift transmission is operated via a gear shift lever and range shift lever. The tractor must be stopped, and clutch used, to change ranges. Gear shifts, within a range, may be made on the move using the clutch.
Speeds
With 13.6-24 rear tires.

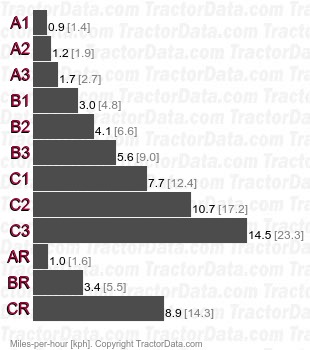

4510 SyncShift partially synchronized speeds
Transmission
TransmissionPowrReverser
Typepower shuttle
Gears12 forward and reverse
Oil capacity38.8 qts
36.7 L
Speeds
With 13.6-24 rear tires.

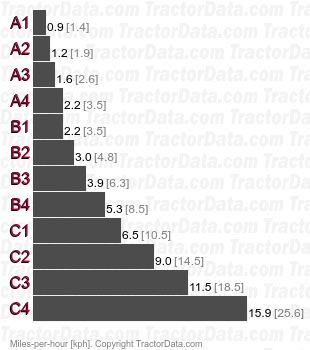

4510 PowrReverser power shuttle speeds
