Deutz-Allis 6070 Transmission


Deutz-Allis 6070 tractor photo
1985 - 1988
Row-Crop tractor
Series map:
6060
6070
70.9hp*
78.6hp*
*Estimated engine power for comparison only.

Note: the Deutz-Allis model 6070 is the same as the Allis Chalmers 6070. The following data is from the 6070 listing.
Transmission
Typesynchronized
Gears12 forward and 3 reverse
Oil capacity12 qts
11.4 L
Four gears, plus reverse, in three ranges. Synchronized shifting with clutch.

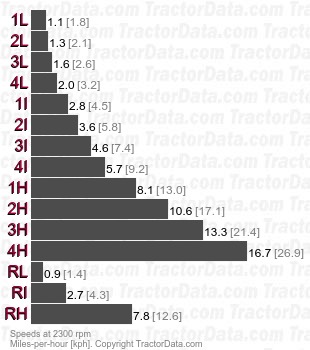

Speeds
6070  synchronized speeds
