Allis Chalmers D15 Series II


Allis Chalmers D15 Series II tractor photo
1960 - 1968
Model year
Row-Crop tractor
Series map:
D15 Series II
51.3hp*
*Estimated engine power for comparison only.
Production
ManufacturerAllis Chalmers
Row-Crop tractor
Total built12,356
Original price$4,400 (1967)
The Allis-Chalmers D15 Series II replaced the D15 for 1963. The D15 Series II featured gas and LPG engines that were bored 0.125 inch larger, while the diesel engine remained the same. Headlights were moved from the hood to the larger rear fenders, an oval muffler was added, and the air filters were changed from oil bath to a dry type. The D15 Series II is identifiable by the full-length white hood decals with the model number at the front.
Allis Chalmers D15 Series II Engines
Allis Chalmers 2.6L 4-cyl gasoline
Allis Chalmers 2.6L 4-cyl LP gas
Allis Chalmers 2.9L 4-cyl diesel
Engine details ...
Allis Chalmers D15 Series II Power
Drawbar (tested)38.33 hp
28.6 kW
PTO (tested)46.18 hp
34.4 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringpower optional
Expanding shoe brakes
Open operator station.
Capacity
Fuel16 gal (gas/diesel)
60.6 L
 15.75 gal (LP gas)
59.6 L
Hydraulic system2.5 gal
9.5 L
Hydraulics
Capacity2.5 gal
9.5 L
Pressure2300 psi
158.6 bar
Valves0 to 3
Tractor hitch
Rear TypeII/I
TypeSnap-Coupler
Dimensions & Tires
Weight4025 to 4525 pounds
Front tire5.50x16
Rear tire12.4x26
Full dimensions and tires ...

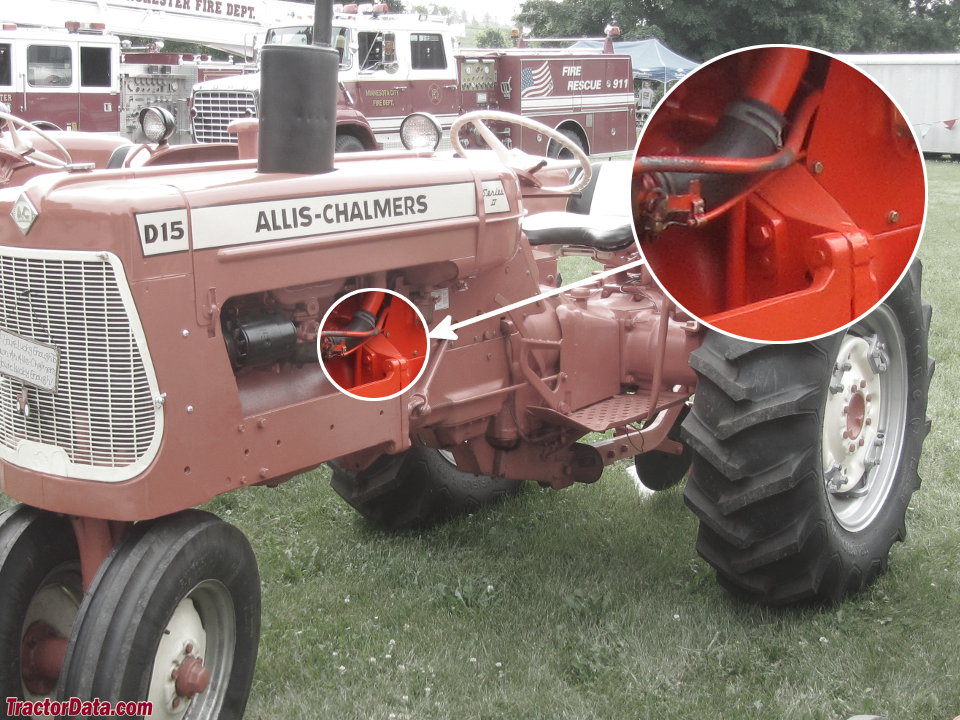

D15 Series II Serial Number Location
Allis Chalmers D15 Series II serial number location
Serial number on the left side of the Allis-Chalmers D15, stamped into the flange where the engine and transmission meet.
D15 Series II Serial Numbers
196313001
196416928
196519681
196621375
196723734
196825127
Final25419

FAQ: How to read a serial number table.
Belt Pulley
Diameter9 inches
22 cm
Width6.5625 inches
16 cm
RPM1678
Speed3956 ft/min
1205.79 meters/min
Electrical
Groundpositive
Batteries1 (gas/LP)
 2 (diesel)
Battery volts12
Battery AH70
References
D15 Series II references literature
Great Power! Your Series II D-15 Allis-Chalmers Tractor published in 1963, by Allis Chalmers
Series II D-15 Tractor published in 1965, by Allis Chalmers
Operators Instructions for D15 Tractor Series II (TM-341)
