Kubota L2201

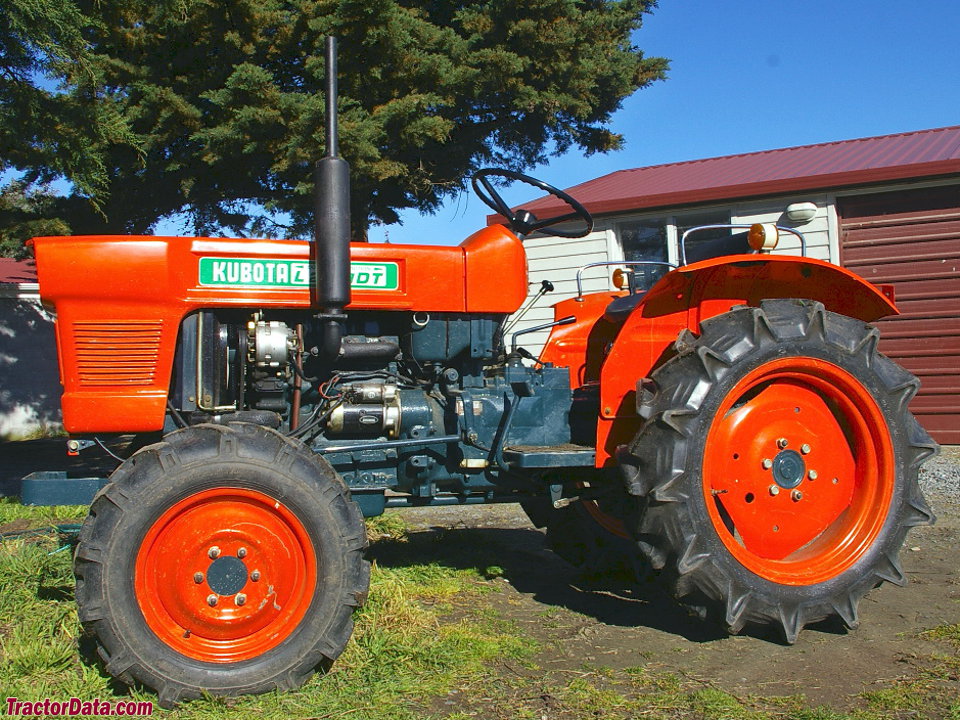

Kubota L2201 tractor photo
1975 - 1978
L01 Series
Compact Utility tractor
Series map:
L1801
L2201
L2601
13.3kw
16.2kw
19.1kw
Production
ManufacturerKubota
Compact Utility tractor
Built in Japan
Variants
L22012WD
L2201DT4WD
Kubota L2201 Engine
Kubota 1.1L 3-cyl diesel
Fuel tank5.8 gal
22.0 L
Engine details ...
Kubota L2201 Power
Engine21.7 hp
16.2 kW
Mechanical
Two- or four-wheel drive
Manual steering
Open operator station.
Tractor hitch
Rear TypeJIS1
Power Take-off (PTO)
Rear PTO Type540 (1.375)
Engine RPM540@2431
 810@2800
 1160@2800
 1480@2800
Dimensions & Tires
2WD Wheelbase58 inches
147 cm
4WD Wheelbase58.4 inches
148 cm
Weight1587 to 1808 pounds
Front tire4.00-12
2WD Rear tire8.3/8-22
Full dimensions and tires ...

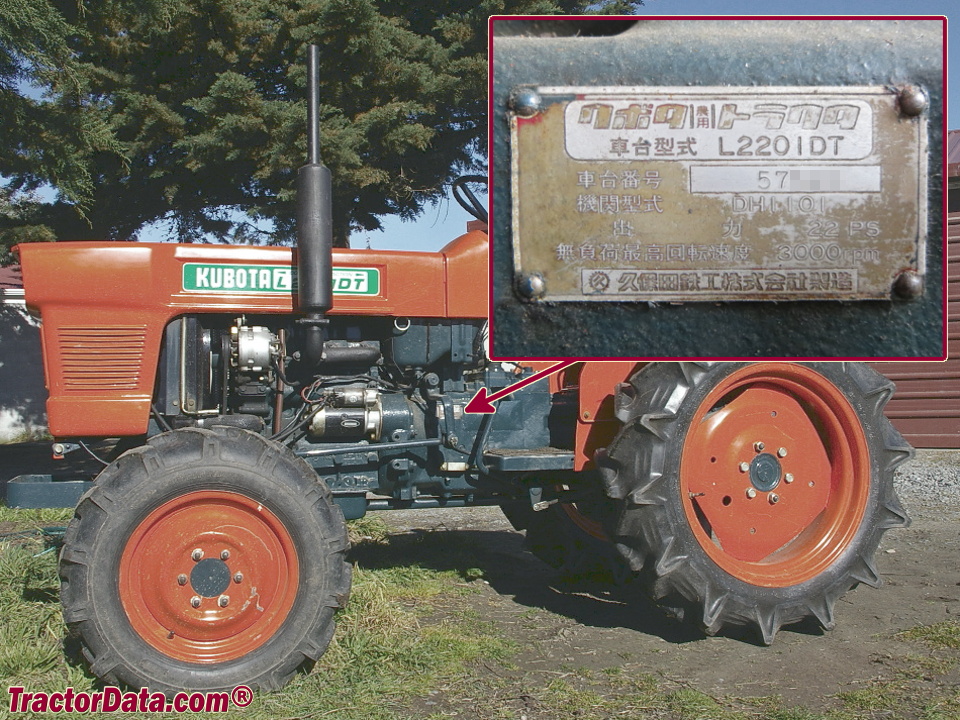

L2201 Serial Number Location
Kubota L2201 serial number location
Serial number plate on the left side of the L2201 tractor frame, just ahead of the clutch pedal.
Electrical
Groundnegative
Battery volts12
References
L2201 references literature
Parts Manual (Z)L1501, 1801, 2201 (07909-14760) published in 1979
