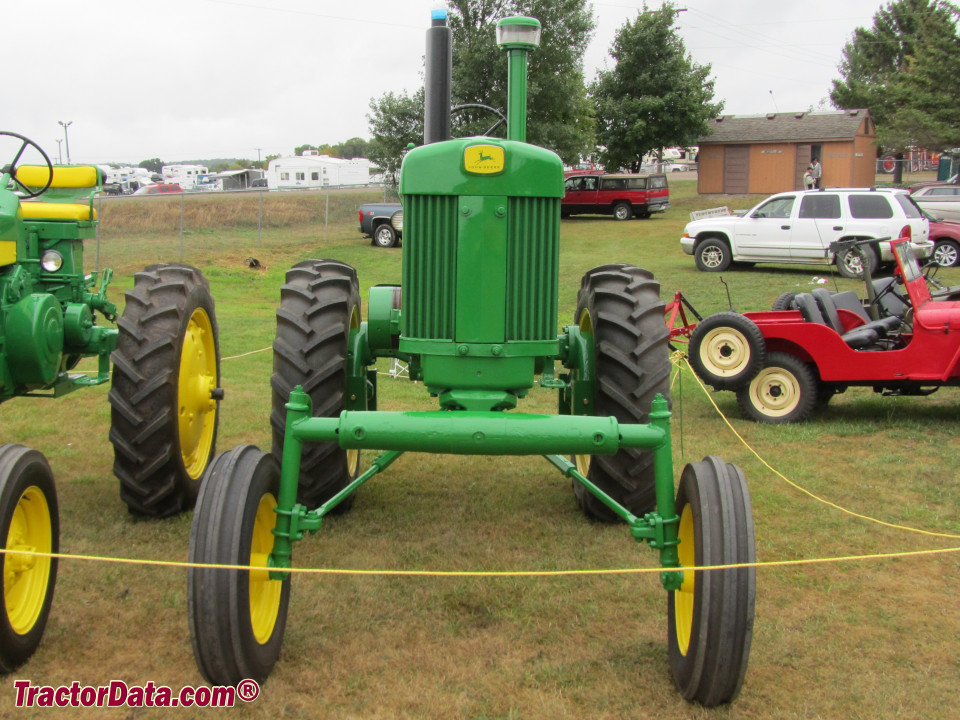

John Deere 730 Hi-Crop
| | 1958 - 1960 |
| Two-Cylinder 30 Series | | High-Clearance tractor |
|
Series map:
630 Hi-Crop
730 Hi-Crop
53.3hp*
64.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| High-Clearance tractor |
| Factories | Waterloo, Iowa, USA
|
| | Rosario, Argentina
|
| Total built | 123 (US total)
|
| | 6 (gasoline)
|
| | 4 (all-fuel)
|
| | 28 (LP-gas)
|
| | 85 . (diesel, 7 used pony engine)
|
| John Deere 730 Hi-Crop Engines |
| John Deere 5.9L 2-cyl gasoline |
| John Deere 5.9L 2-cyl all-fuel |
| John Deere 5.9L 2-cyl LP gas |
| John Deere 6.2L 2-cyl diesel |
| Fuel tank | 20 gal (diesel)
75.7 L
|
| | 24.5 gal (all-fuel)
92.7 L
|
| | 33 gal (LP-gas)
124.9 L
|
| | 26.5 gal (gasoline)
100.3 L
|
| Aux. fuel | 1 gal
3.8 L
|
 Engine details ... |
| John Deere 730 Hi-Crop Power |
| Drawbar (claimed) | 54 hp
40.3 kW
|
| | 41 hp (all-fuel)
30.6 kW
|
| Belt (claimed) | 58 hp
43.3 kW
|
| | 45 hp (all-fuel)
33.6 kW
|
| Plows | 5
|
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| | power (optional)
|
| Differential mechanical drum brakes |
| Open operator station. |
| Tractor hitch |
| Rear Type | II (optional)
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|

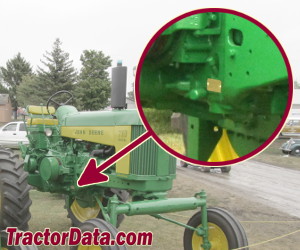

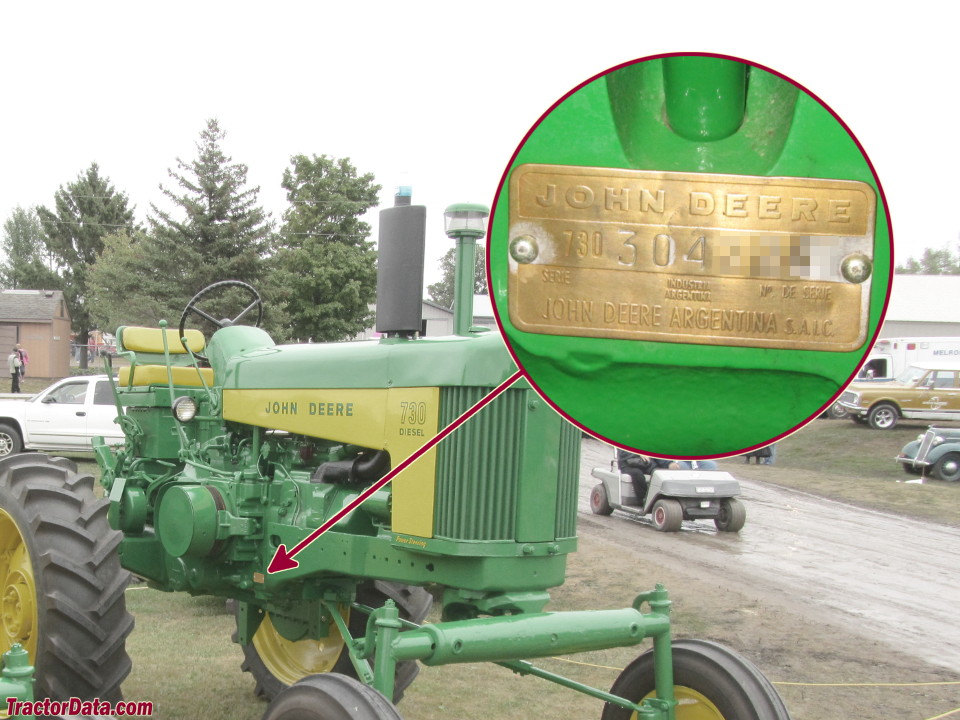

| 730 Hi-Crop Serial Number Location |
 |
| Right side of tractor frame, under the pulley. |
| Belt Pulley |
| Diameter | 12.9 inches
32 cm
|
| Width | 7.4 inches
18 cm
|
| RPM | 1125
|
| Speed | 3790 ft/min
1155.19 meters/min
|
| Electrical |
| Ground | positive (12V)
|
| | floating (24V)
|
| Charging system | generator
|
| Batteries | 2
|
| | 4 (diesel)
|
| Battery volts | 6
|
| References |
 |
| The John Deere 30 Series by J.R. Hobbs |
| 430 - 630 - 730 Hi-Crop Tractors published in 1958, by John Deere |
