| | 1987 - 1994 |
| Utility tractor |
|
Series map:
1350
1550
1750
28.0kw
32.4kw
37.3kw
| Transmission options |
| 8-speed synchromesh |
| 16-speed |
| 12-speed creeper |

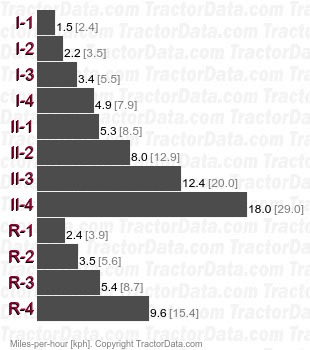

| Transmission |
| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Speeds |
| With 12.4-36 rear tires. |
|

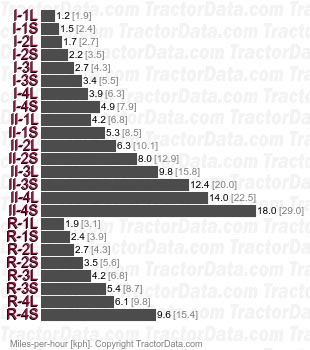

| Transmission |
| Gears | 16 forward and 8 reverse
|
| Speeds |
| With 12.4-36 rear tires. |
|

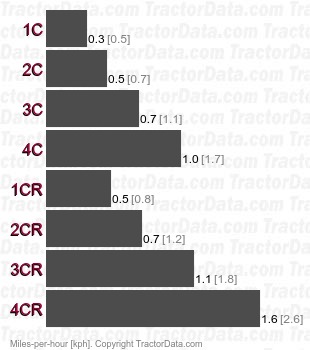

| Transmission |
| Type | creeper
|
| Gears | 12 forward and 8 reverse
|
| Optional creeper adds additional range to the 8-speed transmission. |
| Speeds |
| With 12.4-36 rear tires. |
|
