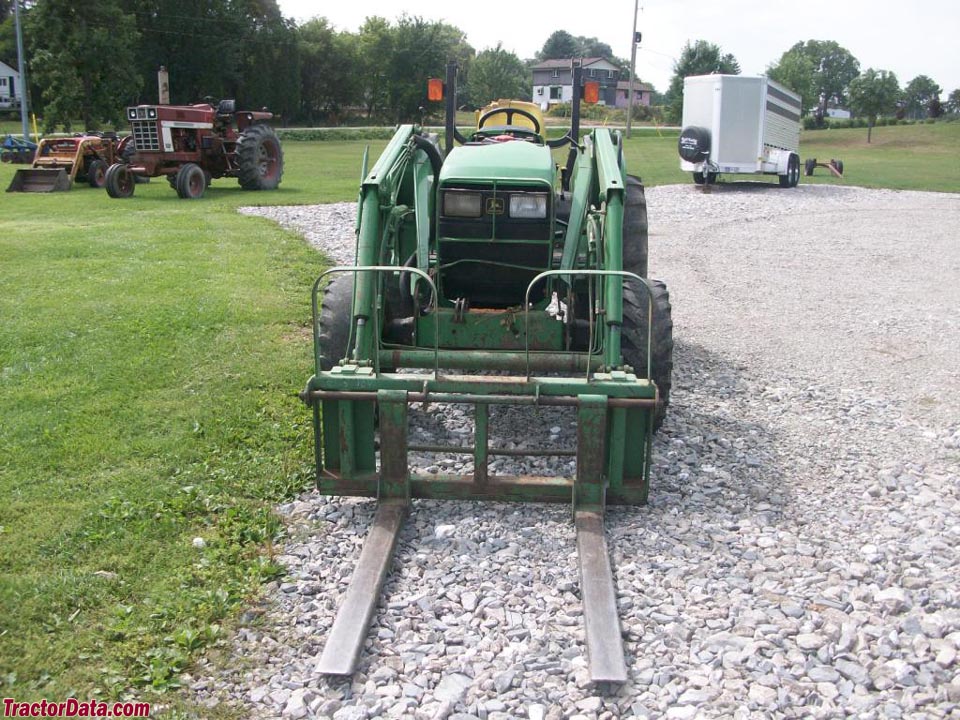

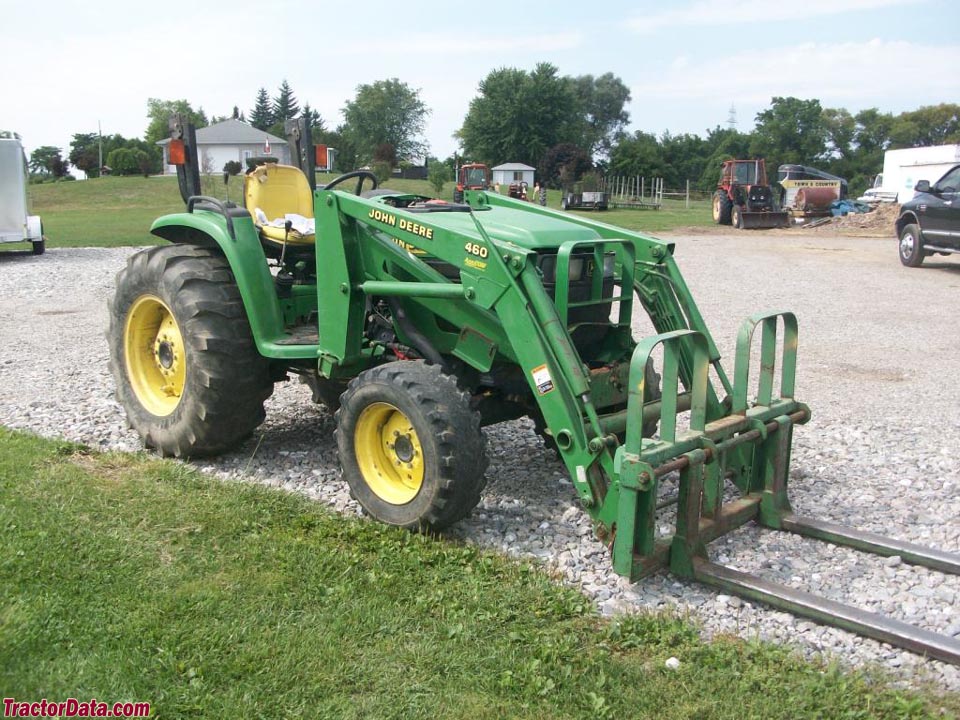

John Deere 4600
| | 1998 - 2001 |
| 4000 Compact Series | | Compact Utility tractor |
|
Series map:
4500
4600
4700
39.0hp
43.0hp
48.0hp
| Production |
| Manufacturer | John Deere
|
| Compact Utility tractor |
| Built in Augusta, Georgia, USA |
| Original price was $25,100 in 2003 |
| John Deere 4600 Power |
| Engine (gross) | 43 hp
32.1 kW
|
| Engine (net) | 41 hp
30.6 kW
|
| PTO (claimed) | 36 hp (gear)
26.8 kW
|
| | 34.5 hp (hydro)
25.7 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Final drives | planetary
|
| Differential lock | mechanical rear
|
| Power steering |
| Wet disc brakes |
| Two-post fixed ROPS. Folding ROPS optional. |
| Capacity |
| Fuel | 12.5 gal
47.3 L
|
| Hydraulic system | 6.8 gal (gear)
25.7 L
|
| | 8.8 gal (hydro)
33.3 L
|
| Front axle | 8.4 qts
7.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 6.8 gal (gear)
25.7 L
|
| | 8.8 gal (hydro)
33.3 L
|
| Pressure | 2500 psi
172.4 bar
|
| Valves | 3 OptOptional
|
| Pump flow | 9.9 gpm
37.5 lpm
|
| Total flow | 14.7 gpm
55.6 lpm
|
| Steering flow | 4.8 gpm
18.2 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| | draft control OptOptional
|
| Rear lift (at 24"/610mm) | 2500 lbs
1134 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic wet disc
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2600
|
| Mid PTO | independent
|
| Mid PTO Type | 2100
|
| Engine RPM | 2100@2600
|
| 4600 Serial Number Location |
 |
| Serial number plate on front-right tractor frame, above front wheel. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| Battery CCA | 650
|
| Battery volts | 12
|
| References |
 |
| Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 1999, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 2000, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 2001, by John Deere |
| 4000 Series Tractors published in 1998, by John Deere |
| 4000 Series Tractors published in 2000, by John Deere |
| Operator's Manual Compact Utility Tractors 4500, 4600 and 4700 (OMLVU10940) published in 1999 |
| 4000 Series Product Information Handbook published in 1998, by John Deere |
| 4000 Series Product Information Handbook published in 2000, by John Deere |
| Rental Equipment published in 2001, by John Deere |
