Lanz HR5 15-30


Lanz HR5 15-30 tractor photo
1929 - 1935
Bulldog Series
Standard-tread tractor
Production
ManufacturerLanz
Standard-tread tractor
Built in Mannheim, Baden-Württemberg, Germany
Lanz HR5 Engine
Lanz 10.3L 1-cyl oil
Fuel tank15.9 gal
60.2 L
Engine details ...
Lanz HR5 Power
Engine30 hp
22.4 kW
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Dimensions & Tires
Wheelbase73.4 inches
186 cm
Weight5688 lbs
2580 kg
Front tire900x150
Rear tire1150x300
Full dimensions and tires ...
References

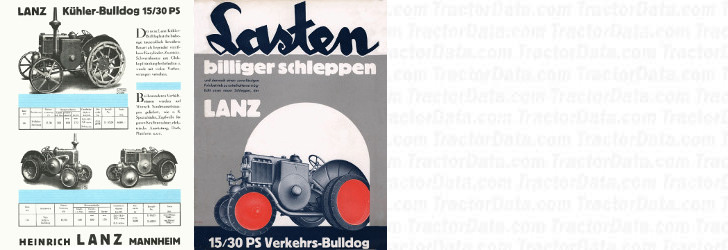

HR5 15-30 references literature
Kuhler-Bulldog 15/30 PS published by Lanz
15/30 PS Verkehrs-Bulldog published by Lanz
