John Deere 510


John Deere 510 tractor photo
1966 - 1967
Utility tractor
Series map:
310
510
710
23.6kw
29.5kw
37.3kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 510 Engine
John Deere 2.5L 3-cyl diesel
Fuel tank18.5 gal
70.0 L
Engine details ...
John Deere 510 Power
Engine39.5 hp
29.5 kW
Mechanical
Two-wheel drive
Open operator station.
Tractor hitch
Rear TypeII/I
Power Take-off (PTO)
Rear PTOlive *2-stage clutch
Rear PTO Type540/1000 (1.375)
Engine RPM540@2250
Dimensions & Tires
Weight4543 lbs
2060 kg
Front tire6.50-16
Rear tire12.4/11-32
Full dimensions and tires ...
510 Serial Number Location

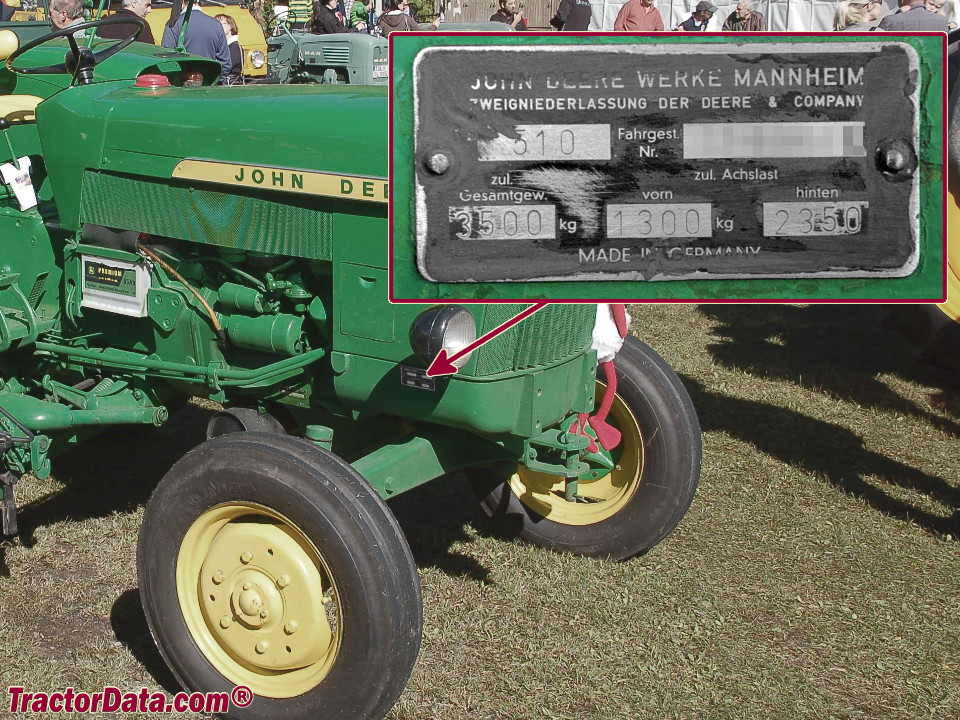

John Deere 510 serial number location
Serial number plate on the right side of the Deere 510 tractor frame, above the front axle.
