Shibaura SE2540
|
|
| Production | |
| Manufacturer | Shibaura |
| Compact Utility tractor | |
| Shibaura SE2540 Engine | |
| Shibaura 1.3L 2-cyl diesel | |
 Engine details ... |
| Shibaura SE2540 Transmission | |
| 12-speed gear | |
 Transmission details ... |
| Shibaura SE2540 Power | |
| Engine | 25 hp 18.6 kW |
| Drawbar (claimed) | 15.8 hp 11.8 kW |
| PTO (claimed) | 21.7 hp 16.2 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | spur gear |
| Manual steering | |
| Mechanical drum brakes | |
| Open operator station. Two-post ROPS available. | |

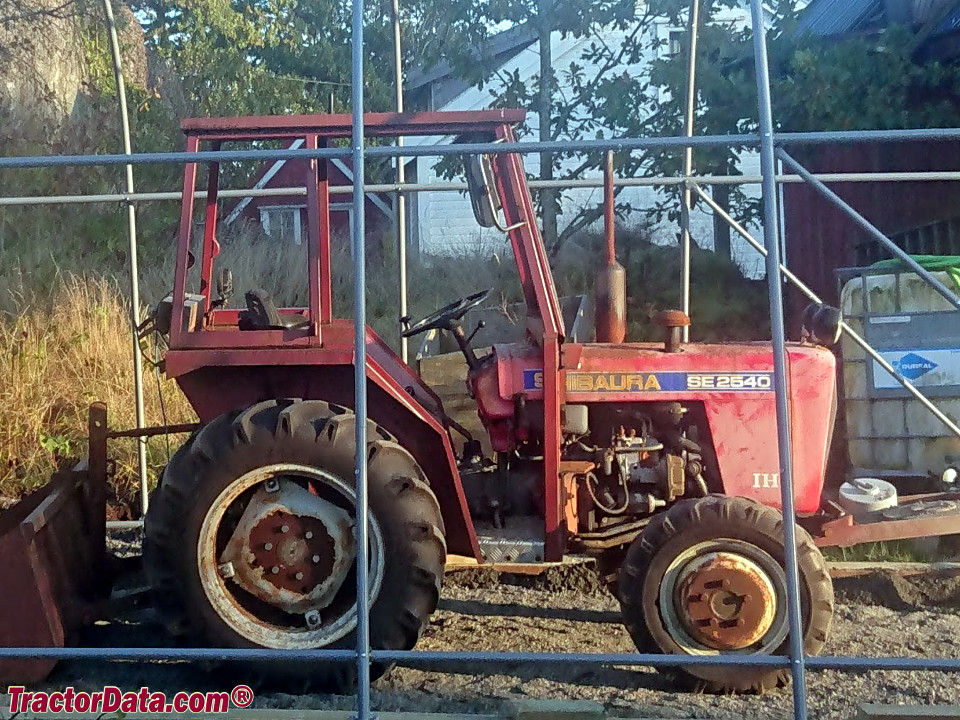

| Photos | |
 | |
 Shibaura SE2540 photos... | |
| Capacity | |
| Fuel | 5.8 gal 22.0 L |
| Hydraulic system | 5.8 gal 22.0 L |
| Hydraulics | |
| Type | open center |
| Capacity | 5.8 gal 22.0 L |
| Pressure | 2133 psi 147.1 bar |
| Valves | 1 |
| Pump flow | 5.3 gpm 20.1 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at ends) | 2425 lbs 1099 kg |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 525@2500 |
| 674@2500 | |
| 856@2500 | |
| 1330@2500 | |
| Dimensions & Tires | |
| Wheelbase | 60.2 inches 152 cm |
| Weight | 2326 lbs 1055 kg |
| Front tire | 6.00-16 |
| Rear tire | 11.2-24 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| Battery volts | 12 |
| References | |
 | |
| Specifications Model SE2500/2540 published by Shibaura |
