ATC Terratrac 200
| | 1954 - 1956 |
|
| Agricultural Crawler tractor |
|
Series map:
200
356
36.5hp
36.5hp
| Production |
| Manufacturer | ATC (a part of J.I. Case)
|
| Agricultural Crawler tractor |
| Built in Churubusco, Indiana, USA |
| ATC 200 Power |
| Engine | 36.5 hp
27.2 kW
|
| Plows | 3 *14-inch
|
| Mechanical |
| Drive | crawler
|
| Final drives | spur gear
|
| Contracting band brakes |
| Open operator station. |
| Power Take-off (PTO) |
| Rear PTO | transmission OptOptional
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@1622
|

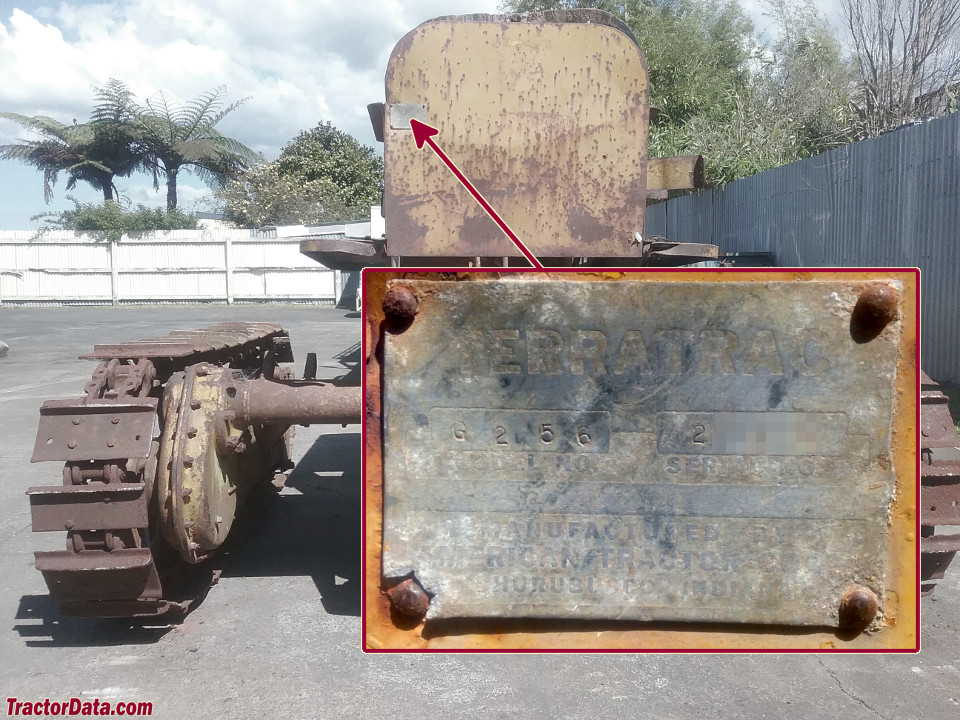

| 200 Serial Number Location |
 |
| Serial number plate on the rear of the Terratrac 256, on the left side of the seat frame. |
| Belt Pulley |
| Diameter | 6 inches
15 cm
|
| Width | 7 inches
17 cm
|
| RPM | 664
|
| Speed | 1043 ft/min
317.91 meters/min
|
| References |
 |
| Tractorama features Continental Red Seal Engines published in 1956, by American Tractor Corporation |
| The Crawler... backbone of construction published in 1956, by American Tractor Corporation |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on August 2, 2024 |
