| | 1985 - 1988 |
| Row-Crop tractor |
|
Series map:
8010
8030
119.3hp*
148.6hp*
*Estimated engine power for comparison only.
Note: the Deutz-Allis model 8010 is the same as the Allis Chalmers 8010. The following data is from the 8010 listing. |
| Transmission options |
| 16-speed partial power shift |
| 20-speed partial power shift |
| 12-speed Allis-Chalmers |
| Transmission |
| Transmission | Allis-Chalmers Power Director
|
| Type | partial power shift
|
| Gears | 16 forward and 4 reverse
|
| Oil capacity | 29.6 qts
28.0 L
|

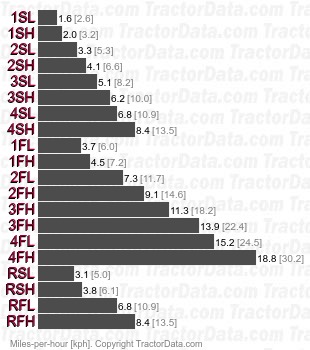

| Four gears (1-4) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever. |
| Speeds |
| With 18.4x38 rear tires. |
|
| Transmission |
| Transmission | Allis-Chalmers Power Director
|
| Type | partial power shift
|
| Gears | 20 forward and 4 reverse
|
| Oil capacity | 29.6 qts
28.0 L
|
| Five gears (1-5) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever. |
| Speeds |
| With 18.4x38 rear tires. |
|
| Transmission |
| Transmission | Power Shift
|
| Type | Allis-Chalmers
|
| Gears | 12 forward and 2 reverse
|
| Oil capacity | 29.6 qts
28.0 L
|

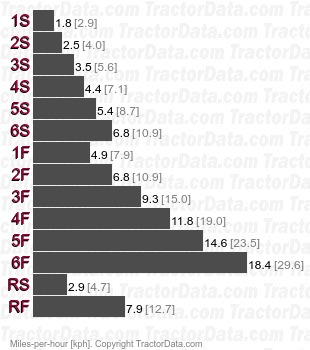

| Six power shift gears (1-6) in two ranges (slow/fast). Clutch must be used to shift range. Pressing the clutch pedal half-way automatically downshifts from 5th/6th to 4th gear. |
| Speeds |
| With 18.4x38 rear tires. |
|
