John Deere 720 Hi-Crop
| | 1956 - 1958 |
| Two-Cylinder 20 Series | | High-Clearance tractor |
|
Series map:
720 Hi-Crop
65.6hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| High-Clearance tractor |
| Built in Waterloo, Iowa, USA |
| Total built | 125
|
| Original price was $3,700 in 1958 |
| Variants |
| 720 | row-crop chassis
|
| 720S | standard-tread
|
| 720HC | high-crop
|
| John Deere 720 Hi-Crop Engines |
| John Deere 5.9L 2-cyl gasoline |
| John Deere 5.9L 2-cyl all-fuel |
| John Deere 5.9L 2-cyl LP gas |
| John Deere 6.2L 2-cyl diesel |
| Fuel tank | 24.5 gal (all-fuel)
92.7 L
|
| | 26.5 gal (gasoline)
100.3 L
|
| | 33 gal (LP gas)
124.9 L
|
| | 20 gal (diesel)
75.7 L
|
| Aux. fuel | 1 gal (all-fuel)
3.8 L
|
| | 0.25 gal (diesel)
0.9 L
|
 Engine details ... |
| John Deere 720 Hi-Crop Power |
| Drawbar (claimed) | 53 hp
39.5 kW
|
| PTO (claimed) | 59 hp
44.0 kW
|
| Belt (claimed) | 50.67 hp
37.8 kW
|
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| | power OptOptional
|
| Differential mechanical expanding shoe brakes |
| Open operator station. |
| Hydraulics |
| Type | open center
|
| Valves | 1
|
| Tractor hitch |
| Rear Type | II
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Rear PTO Type | 540
|

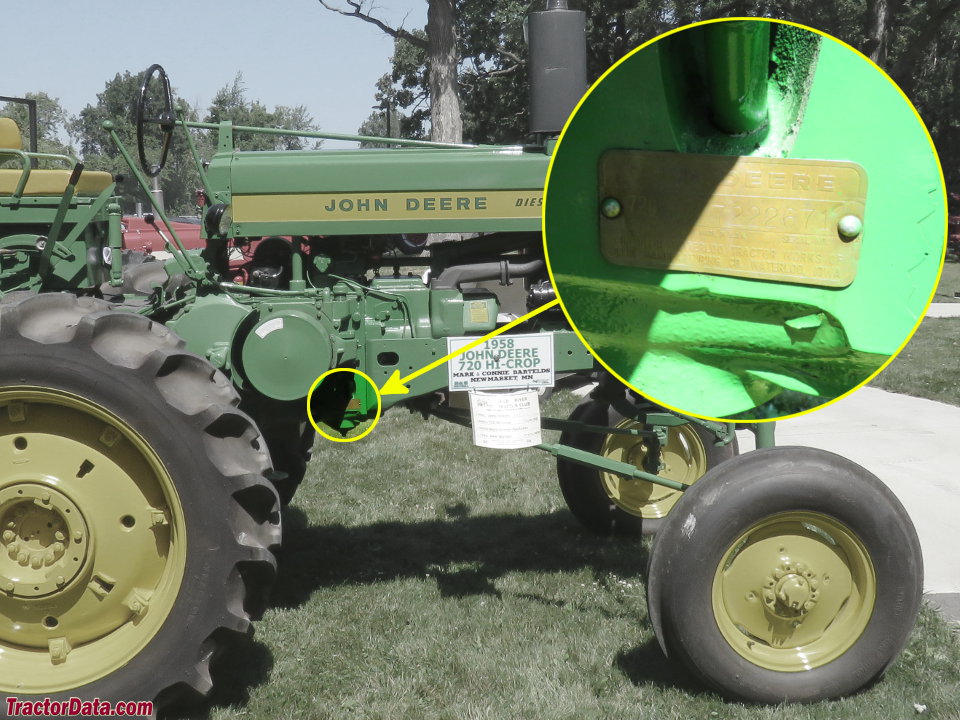

| 720 Hi-Crop Serial Number Location |
 |
| Right side of tractor in front of and below pulley. |
| Electrical |
| Ground | positive (12V)
|
| | floating (24V)
|
| Batteries | 2 (12V)
|
| | 4 (24V)
|
| Battery volts | 6
|
| References |
 |
| The John Deere 20 series Two Cylinder Tractors by Benjamin Hain |
| Operator's Manual 720 Series Hi-Crop Tractor (OM-R2061) published in 1956 |
