Hinomoto NX240 Transmission


Hinomoto NX240 tractor photo
1993 - 1995
NX Series
Compact Utility tractor
Kubota built
Series map:
NX220
NX240
NX260
16.2kw
17.7kw
19.1kw

Note: the Hinomoto model NX240 is the same as the Kubota GL240. The following data is from the GL240 listing.
Transmission options
16-speed gear
16-speed power shift
Transmission
Typegear
Gears16 forward and reverse
Clutchdry disc
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.
Speeds

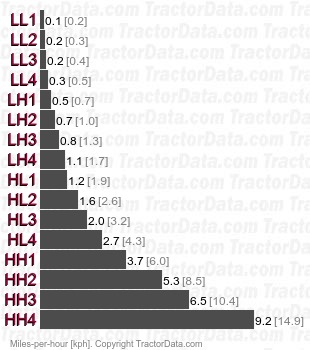

NX240  gear speeds
Transmission
Typepower shift
Gears16 forward and reverse
