Tractors > Hinomoto > C174

Hinomoto C174 Engine



Hinomoto C174 tractor photo
1980 - 1985
Concord Series
Compact Utility tractor
Series map:
C174
C174
C174
19.7hp
19.7hp
19.7hp
Engine Detail
Toyosha CS100
diesel
3-cylinder
liquid-cooled
Displacement61.27 ci
1.0 L
Bore/Stroke2.874x3.15 inches
73 x 80 mm
Power (net)17.8 hp
13.3 kW
Power (gross)19.7 hp
14.7 kW
Rated RPM2500
Torque40.5 lb-ft
54.9 Nm
Torque RPM1800
Starterelectric
Starter volts12
Starter power1.07 hp
0.8 kW
Oil capacity2.3 qts
2.2 L
Coolant capacity3.2 qts
3.0 L

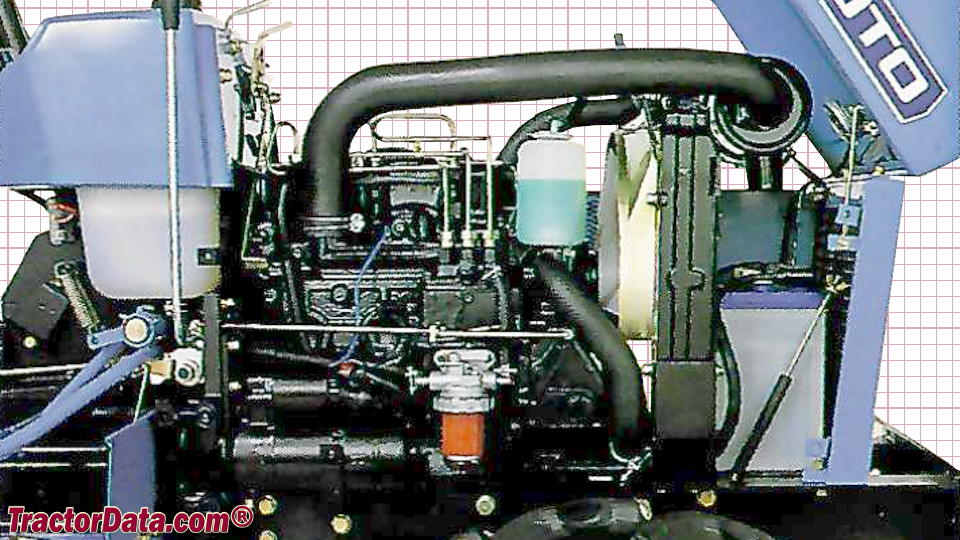

Hinomoto C174 Engine
Hinomoto C174 engine image
