| | 1976 - 1982 |
| 500 Series | | Row-Crop tractor |
|
Series map:
565
575
590
44.7kw
49.2kw
55.9kw
| Transmission options |
| 8-speed gear |
| 12-speed two-speed power shift |
| Transmission |
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 305mm dry disc
|
| Four gears, plus reverse, in high and low ranges. |
| Speeds |
| With 16.9x30 rear tires. |
|
| Transmission |
| Transmission | Multi-Power
|
| Type | two-speed power shift
|
| Gears | 12 forward and 4 reverse
|
| Three gears in low and high ranges with two-speed Multi-Power power shift. |

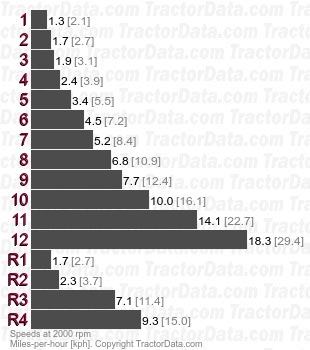

| Speeds |
| With 16.9x30 rear tires. |
|
