Gibson H
|
|
| Production | |
| Manufacturer | Gibson |
| Row-Crop tractor | |
| Built in Longmont, Colorado, USA | |
| Variants | |
| H | tricycle front |
| HFA | adjustable wide front |
| HFS | standard front |
| Gibson H Engine | |
| Hercules 2.2L 4-cyl gasoline | |
| Fuel tank | 17 gal 64.3 L |
 Engine details ... | |
| Gibson H Transmission | |
| 4-speed gear | |
 Transmission details ... |
| Gibson H Power | |
| Plows | 2 |
| Drawbar (tested) | 22.77 hp 17.0 kW |
| Belt (tested) | 24.54 hp 18.3 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Final drives | bull gear |
| Manual steering | |
| Mechanical band brakes | |
| Open operator station. | |
| Photos | |
 | |

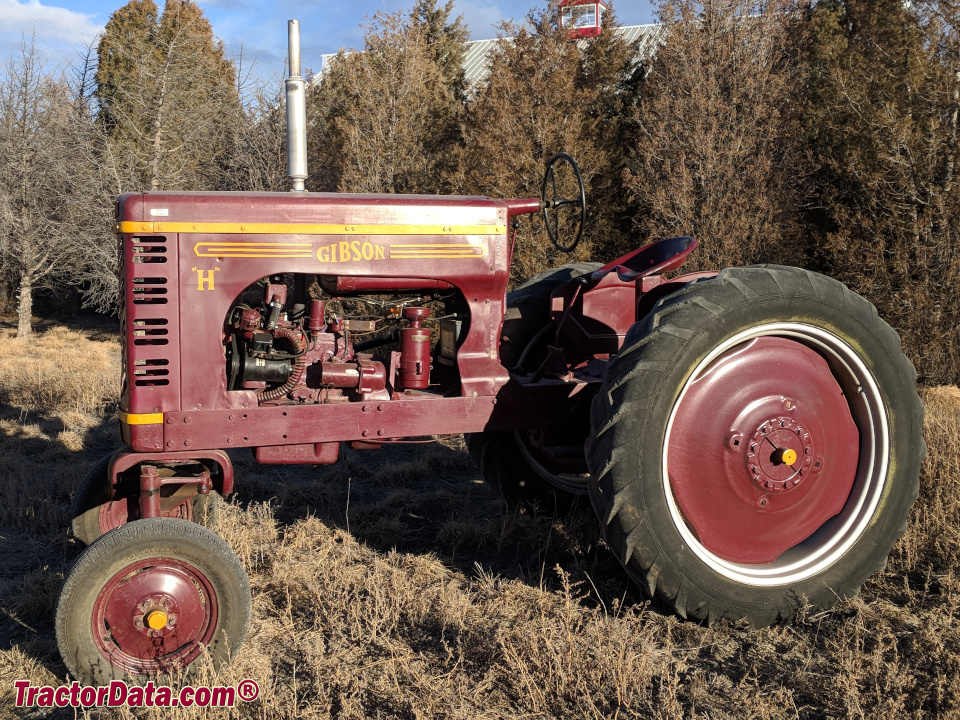

 Gibson H photos... | |
| Power Take-off (PTO) | |
| Rear PTO | live |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 86 inches 218 cm |
| Weight | 3650 to 4079 pounds |
| Front tire | 5.00-15 |
| Rear tire | 10-38 |
 Full dimensions and tires ... | |
| Belt Pulley | |
| Diameter | 9.2 inches 23 cm |
| Width | 7.5 inches 19 cm |
| RPM | 1487 |
| Speed | 3539 ft/min 1078.69 meters/min |
| References | |
 | |
| Gibson Tractors - Durability, lower operating costs, plus extra power. published in 1948 |
