Gibson H Tests


Gibson H tractor photo
1948 - 1952
Row-Crop tractor
Nebraska Tractor Test 407

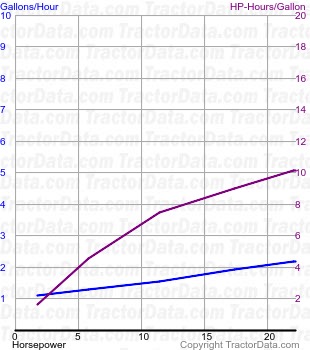

H fuel use from test 407
Nebraska Tractor Test 407
Gasoline 4-speed 2WD
May 2 - 7, 1949
Link: Nebraska Tractor Test 407 file
Belt power (max)24.54 hp
18.3 kW
Belt fuel use (max)2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power22.77 hp
17.0 kW
Gear 3 used for power test.
Max pull3503 lbs
1588 kg
Gear 1 used for pull test.
