Tractors > Farmall > Hydro 100

Farmall Hydro 100 Tests

66 Series

Row-Crop tractor

Series map:

966

Hydro 100

1066

91.0hp

115.7hp*

140.0hp*

*Estimated engine power for comparison only.

Note: the Farmall model Hydro 100 is the same as the International Harvester Hydro 100. The following data is from the Hydro 100 listing.

Note: the Farmall model Hydro 100 is the same as the International Harvester Hydro 100. The following data is from the Hydro 100 listing.

Nebraska Tractor Test 1158

Nebraska Tractor Test 1158
Diesel hydrostatic 2WD May 7 - 18, 1974 Link: Nebraska Tractor Test 1158 file

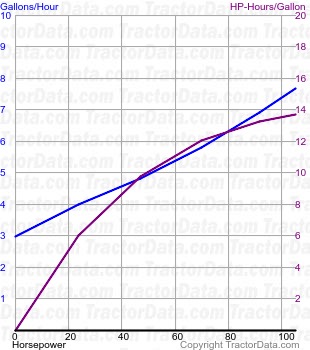

PTO performance
Power at rated engine speed	104.17 hp 77.7 kW
Fuel use	7.6 gal/hour 28.8 l/hour
Power at rated PTO speed	101.30 hp 75.5 kW
Fuel use	6.8 gal/hour 25.7 l/hour
Drawbar performance
Max power	78.31 hp 58.4 kW
Fuel use	7.6 gal/hour 28.8 l/hour
Gear 5.5 MPH used for power test.
Max pull	9,801 lbs 4445 kg
Gear 2.85 MPH used for pull test.
