Farmall Cub Engine



Farmall Cub tractor photo
1947 - 1964
Series map:
Cub
12.2hp*
*Estimated engine power for comparison only.
Engine Detail
International Harvester C60
gasoline
4-cylinder
liquid-cooled
Displacement59.5 ci
1.0 L
Bore/Stroke2.625x2.75 inches
67 x 70 mm
Cooling systemthermosyphon
Air cleaneroil bath
Compression6.5:1
Rated RPM1600 (early)
 1800 (late)
Firing order1-3-4-2
Startermanual
 electric OptOptional
Starter volts6
 12 (After SN# 224401)
Coolant capacity9.75 qts
9.2 L
SparkplugChampion D-21
 AC C86
Sparkplug gap0.023 inches
0.584 mm
Intake valve clearance0.013 inches (cold)
0.330 mm
Exhaust valve clearance0.013 inches (cold)
0.330 mm
Engine Oil

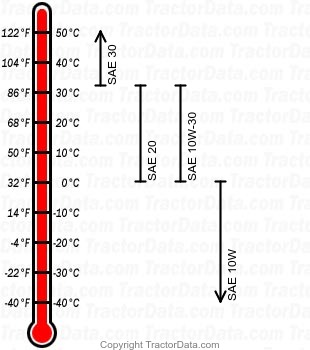

Cub gasoline engine oil chart
Oil capacity3 qts
2.8 L
Oil change120 h
