Tractors > Farmall > 1466

Farmall 1466



Farmall 1466 tractor photo
Row-Crop tractor

Note: the Farmall model 1466 is the same as the International Harvester 1466. The following data is from the 1466 listing.
Production
ManufacturerFarmall (a part of International Harvester)
Row-Crop tractor
Built in Rock Island, Illinois, USA
Total built25,264
Original price was $23,600 in 1976
Farmall 1466 Engine
International Harvester 7.1L 6-cyl diesel
Engine details ...
Farmall 1466 Transmissions
8-speed gear
16-speed two-speed power shift
Transmission details ...
Farmall 1466 Power
PTO (claimed)133 hp
99.2 kW
Drawbar (tested)123.20 hp
91.9 kW
PTO (tested)145.77 hp
108.7 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesbull gear
Power steering
Independent hydrostatic dry disc brakes
Cab optional with heat and air-conditioning.
Photos
Farmall 1466 with after-market cab and duals.
Farmall 1466 photos...
Capacity
Fuel42 gal
159.0 L
Hydraulic system22 gal
83.3 L
Hydraulics
Typeopen center
Capacity22 gal
83.3 L
Pressure2000 psi
137.9 bar
Valves1
Pump flow12 gpm
45.4 lpm
Total flow21 gpm
79.5 lpm
Steering flow9 gpm
34.1 lpm
Steering press.1550 psi
106.9 bar
Tractor hitch
Rear TypeII/II OptOptional
Rear lift (at 24"/610mm)5600 lbs
2540 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type1000
Engine RPM1000@2100
Dimensions & Tires
Wheelbase105 inches
266 cm
Weight13480 lbs
6114 kg
Front tire11L-15
Rear tire18.4-38
Full dimensions and tires ...
1466 Serial Numbers
Location:Clutch housing, left side
19717101
197210408
197315533
197419746
197525404
197629516

FAQ: How to read a serial number table.
Electrical
Charging amps32
Batteries2
Battery volts6
Battery AH172
References

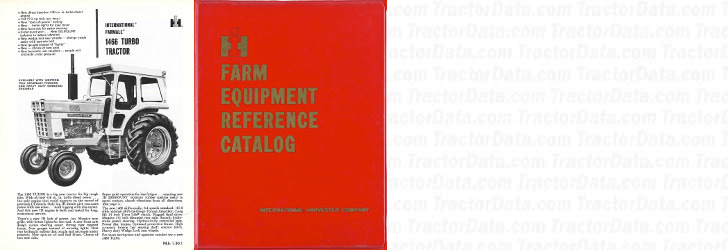

1466 references literature
Farmall 1466 Turbo Tractor published by International Harvester
Farm Equipment Reference Catalog published in 1971, by International Harvester
