Farmall 1466 Tests
|
|
Note: the Farmall model 1466 is the same as the International Harvester 1466. The following data is from the 1466 listing. |
| Tractor Tests | |
| NTTL 1080: 2400rpm diesel TA 2WD | |
| NTTL 1125: 2600rpm diesel TA 2WD |

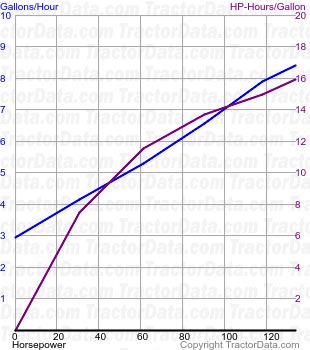

| Nebraska Tractor Test 1080 | |||
| |||
| Nebraska Tractor Test 1080 | |
| 2400rpm diesel TA 2WD October 2 - 19, 1971 Link: Nebraska Tractor Test 1080 file | |
| PTO performance | |
| Power at rated engine speed | 133.4 hp 99.5 kW |
| Fuel use | 8.4 gal/hour 31.8 l/hour |
| Power at rated PTO speed | 125.17 hp 93.3 kW |
| Fuel use | 7.4 gal/hour 28.0 l/hour |
| Drawbar performance | |
| Max power | 115.74 hp 86.3 kW |
| Fuel use | 8.3 gal/hour 31.4 l/hour |
| Gear 1-Hi-TA used for power test. | |
| Max pull | 13,165 lbs 5971 kg |
| Gear 3-Lo-TA used for pull test. | |

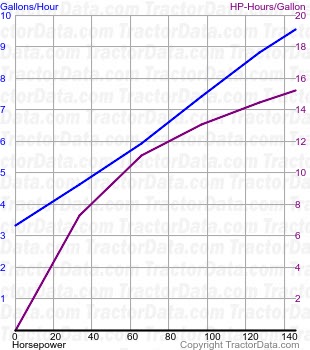

| Nebraska Tractor Test 1125 | |||
| |||
| Nebraska Tractor Test 1125 | |
| 2600rpm diesel TA 2WD April 17 - 27, 1973 Link: Nebraska Tractor Test 1125 file | |
| PTO performance | |
| Power at rated engine speed | 145.77 hp 108.7 kW |
| Fuel use | 9.6 gal/hour 36.3 l/hour |
| Power at rated PTO speed | 145.85 hp 108.8 kW |
| Fuel use | 8.6 gal/hour 32.6 l/hour |
| Drawbar performance | |
| Max power | 123.20 hp 91.9 kW |
| Fuel use | 9.5 gal/hour 36.0 l/hour |
| Gear 1-Hi-TA used for power test. | |
| Max pull | 13,673 lbs 6202 kg |
| Gear 3-Lo-TA used for pull test. | |
