Farmall 806 Transmission


Farmall 806 tractor photo
1963 - 1967
Row-Crop tractor
Series map:
706
806
1206
89.0hp
110.0hp
125.1hp*
*Estimated engine power for comparison only.
Transmission options
8-speed unsynchronized
16-speed two-speed power shift
Transmission
Typeunsynchronized
Gears8 forward and 4 reverse
Clutch12-inch dry disc
Four gears (1-4) in low, high, and reverse ranges.

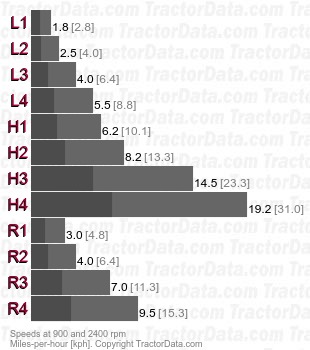

Speeds
With 15.5-38 rear tires.
806  unsynchronized speeds
Shift Pattern
Farmall 806 transmission controls
Transmission
TransmissionTorque Amplifier
Typetwo-speed power shift
Gears16 forward and 8 reverse
Clutch12-inch dry disc
As two-range Torque Amplifer (TA) to the basic transmission. Pulling back on the left-hand TA lever provides a clutchless shift to a lower speed for each gear. Pushing the lever forward return to direct-drive mode.

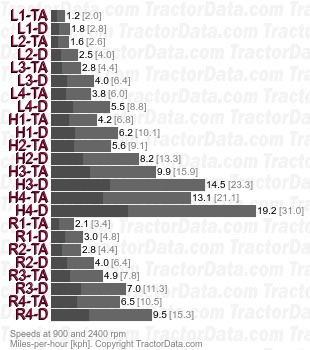

Speeds
With 15.5-38 rear tires.
806 Torque Amplifier two-speed power shift speeds
