Tractors > Farmall > 806

Farmall 806 Tests



Farmall 806 tractor photo
1963 - 1967
Row-Crop tractor
Series map:
706
806
1206
89.0hp
110.0hp
125.1hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 857: diesel Torque Amplifier 2WD
NTTL 859: gasoline Torque Amplifier 2WD
NTTL 861: LP-gas Torque Amplifier 2WD
Nebraska Tractor Test 857

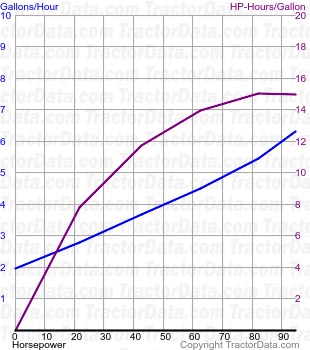

806 fuel use from test 857
Nebraska Tractor Test 857
Diesel Torque Amplifier 2WD
October 22 - 30, 1963
Link: Nebraska Tractor Test 857 file
PTO performance
Power at rated engine speed94.93 hp
70.8 kW
Fuel use6.3 gal/hour
23.8 l/hour
Power at rated PTO speed89.04 hp
66.4 kW
Fuel use5.9 gal/hour
22.3 l/hour
Drawbar performance
Max power84.77 hp
63.2 kW
Fuel use6.4 gal/hour
24.2 l/hour
Gear 2H-TA used for power test.
Max pull9,182 lbs
4164 kg
Gear 3L-TA used for pull test.
Nebraska Tractor Test 859

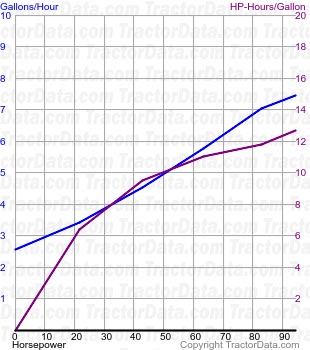

806 fuel use from test 859
Nebraska Tractor Test 859
Gasoline Torque Amplifier 2WD
10/28/1963
Link: Nebraska Tractor Test 859 file
PTO performance
Power at rated engine speed93.27 hp
69.6 kW
Fuel use7.4 gal/hour
28.0 l/hour
Power at rated PTO speed83.99 hp
62.6 kW
Fuel use6.6 gal/hour
25.0 l/hour
Drawbar performance
Max power80.70 hp
60.2 kW
Fuel use7.5 gal/hour
28.4 l/hour
Gear 2H-TA used for power test.
Max pull9,003 lbs
4083 kg
Gear 3L-TA used for pull test.
Nebraska Tractor Test 861

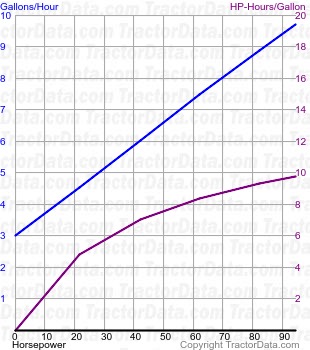

806 fuel use from test 861
Nebraska Tractor Test 861
LP-gas Torque Amplifier 2WD
November 6 - 26, 1963
Link: Nebraska Tractor Test 861 file
PTO performance
Power at rated engine speed93.42 hp
69.7 kW
Fuel use9.6 gal/hour
36.3 l/hour
Power at rated PTO speed83.20 hp
62.0 kW
Fuel use8.4 gal/hour
31.8 l/hour
Drawbar performance
Max power81.53 hp
60.8 kW
Fuel use9.5 gal/hour
36.0 l/hour
Gear 2H-TA used for power test.
Max pull9,072 lbs
4115 kg
Gear 3L-TA used for pull test.
